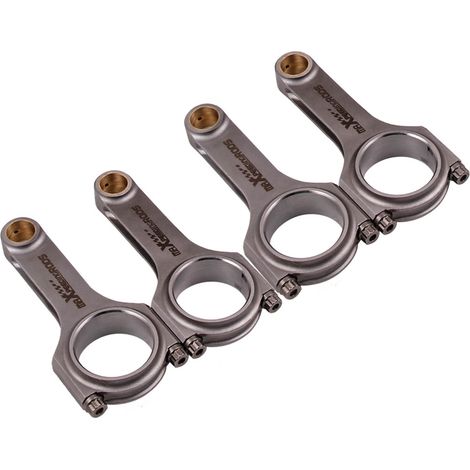

Forged 4340 EN24 Connecting Rods Conrod Bielas for Suzuki GSX-R1000 05-08 111mm

Name: Forged 4340 EN24 Connecting Rods Conrod Bielas for Suzuki GSX-R1000 05-08 111mm
Brand: MAXPEEDINGRODS
SKU: NB0M5D
Price: 400.99 GBP
Availability: InStock

Sold by maXpeedingrods GB

Product information

Description

General description

Forged 4340 EN24 Connecting Rods (Conrod Bielas) are designed specifically for the Suzuki GSX-R1000 models from 2005 to 2008. Made from high-quality forged 4340 aircraft chrome moly steel, these H-beam conrods are engineered for racing applications, ensuring maximum strength and durability.

Technical specifications

Type: Forged 4340 aircraft chrome moly steel

Quantity: 4 pieces per set

Bolts: Includes ARP 2000 bolts (upgrade to ARP L19 bolts available at extra cost)

Bolts Size: 5/16"

Power: 600hp ~ 800PS per set

Strength of fastening: 220,000/230,000 PSI

Torque: 48ft ≈ 65 NM

Top acceleration: 7000rpm

Warranty: 2 years

Dimensions:

Center to center length: 111mm

Big end diameter: 38mm

Small end diameter: 15mm

Big end width: 20mm

Small end width: 16mm

Installation

Professional installation is highly recommended as no instructions are included.

Usage

These connecting rods are designed for high-performance racing applications, providing enhanced strength and reliability for Suzuki GSX-R1000 motorcycles.

Other information

All big and small ends are finished with a SUNNEN honing machine

Precision alignment sleeves maintain big end bore size and eliminate cap walk

100% X-rayed, sonic tested, and magnafluxed

Multi-stage heat treated and shot peened to relieve stress

Comes with bronzed bushing suitable for the floating piston pin

Features

Brand
MAXPEEDINGRODS
Height
111 mm
Material
Steel
Pcs per pack
4
Type of part for lower engine
Connecting rod
