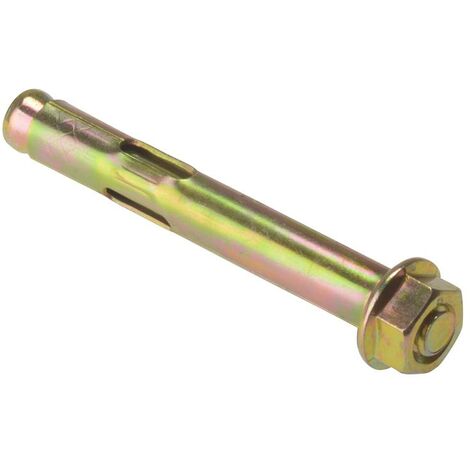

Forgefix Sleeve Anchor M10 x 50mm Hex Nut Bag of 10

Forgefix M10 x 50mm sleeve anchors are through-fixing anchors with a hex nut head, designed for quick, reliable installation. Sleeve wedge cones deliver maximum expansion even at shallow embedment depths, while the reduced outside sleeve diameter allows smaller drill holes and reduces stress on base materials. The anchors are zinc yellow passivated for improved corrosion resistance and a neat finish. The bolt remains in the shield for easier fixture removal or repositioning. Common applications include fixing balustrades, handrails, racking and holding-down machinery in masonry. Supplied as a bag of 10, drill size 10mm with a minimum hole depth of 45mm.

Through fixing for quick, simple installation.

Sleeve wedge cone provides maximum expansion in shallow anchoring depths.

Reduced outside sleeve diameter for smaller drilled holes and lower base-material stress.

Zinc yellow passivated finish for enhanced corrosion resistance and appearance.

Drill size: 10mm with a minimum hole depth of 45mm.

Hex nut head and bolt-in-shield design allow easier removal or repositioning of fixtures.

Suitable for masonry and for internal and external use.
