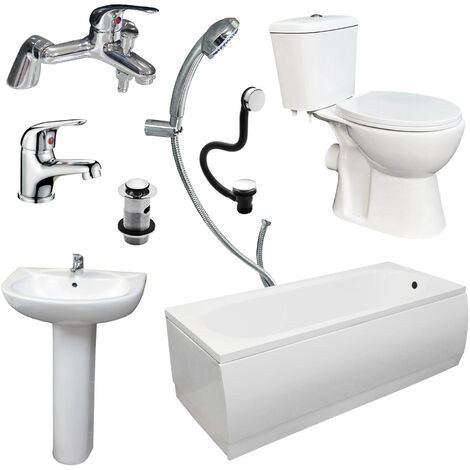

Gillian Rimless White Modern Style Complete Bath Suite Including Tap Set

Product information

Description

General description

A modern style bath suite that includes the Gillian rimless toilet and basin set, along with the Imelda bath featuring an anti-slip base.

Technical specifications

Gillian Rimless Close Coupled Toilet:

Width: 357mm

Depth: 665mm

Height: 750mm

Pan only Height: 400mm

Matching basin and pedestal:

Width: 530mm

Depth: 445mm

Height: 840mm

Imelda Acrylic Bath:

External Length: 1675mm

External Width: 695mm

External Height: 555mm

Internal Length near top: 1480mm

Internal Length near bottom: 1140mm

Internal Width near top: 520mm

Internal Width near bottom: 400mm

Inside Height max: 370mm

Inside from bottom of bath to centre of overflow: 310mm

Compatibility and accessories

Floor fixing kit (available at extra cost)

Bath panel (1700mm standard length, sold separately)

End bath panel (not included)

Bath waste (not included)

Installation

Bath panels will need to be cut on site by your plumber.

Un-drilled for tap holes, can easily be drilled on site.

Usage

Requires minimum 0.5 bar operating pressure for taps.

Other information

Uma range bath and basin tap set includes:

Bath shower mixer, shower head & hose, bath overflow waste, basin mono mixer, and click clack waste.

Polished chrome finish, manufactured from solid brass.

40mm high flow cartridge with single lever control.

Flexible metal braided hoses supplied for easy fixing.

Hole in rear of tap for use with pop up or click clack waste.

Chrome plated high quality bath click clack waste and brass chrome plated overflow.

Complete with sealing washers and suitable for connection to standard UK traps.

Features

Brand
HYDROS
Length
167.5 cm
Width
69.5 cm
Height
55.5 cm
Material
Acrylic
