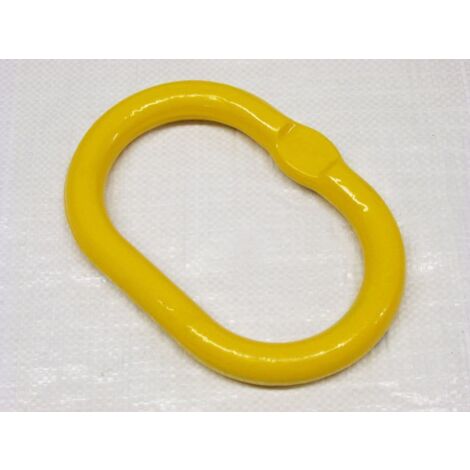

Grade 8 Master Link Ring with Flat Welded 14MM (G80 3.2 Ton Chain Sling Lifting Component)

Sold by SecureFix Direct

You may also like

8mm STAINLESS STEEL 316 (A4) Long D shackle

8mm STAINLESS STEEL 316 (A4) Long D shackle

1
10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle
#1 in sales

12mm STAINLESS STEEL 316 (A4) D shackle

1
8mm STAINLESS STEEL 316 (A4) Spring Hook / carabiner

8mm STAINLESS STEEL 316 (A4) Spring Hook / carabiner

1
Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)SECUREFIX DIRECT

Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)

Free shipping
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free shipping
Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)SECUREFIX DIRECT

Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)

1
Free shipping
M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MMSECUREFIX DIRECT

M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MM

Free shipping
3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"SECUREFIX DIRECT

3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"

Free shipping
1 3/4" x 8 1/4" CAT 1-2 Top Link Miscellaneous Pin - Tractor Connector Linkage Attachment MiscSECUREFIX DIRECT

1 3/4" x 8 1/4" CAT 1-2 Top Link Miscellaneous Pin - Tractor Connector Linkage Attachment Misc

Free shipping
Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic MultiSECUREFIX DIRECT

Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic Multi

Free shipping
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free shipping
22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4SECUREFIX DIRECT

22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4

Free shipping
25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4SECUREFIX DIRECT

25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4

Free shipping
4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing TestedSECUREFIX DIRECT

4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing Tested

Free shipping
Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)SECUREFIX DIRECT

Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)

Free shipping
Safety Pin Bow Shackle - 12 Ton Galvanised 35MM 12000KG OmegaSECUREFIX DIRECT

Safety Pin Bow Shackle - 12 Ton Galvanised 35MM 12000KG Omega

Free shipping
13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"SECUREFIX DIRECT

13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"

1
Free shipping
X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting Towing

Free shipping
Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lbWINCHMAX

Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lb

Free shipping

Compare with similar items

Product information

Description

General description

This Grade 8 Master Link Ring with Flat Welded 14MM is a high-quality lifting component designed for use in the lifting gear industry. It serves as the main connecting point on chain slings, suitable for both single and two-leg chain sling assemblies. This versatile piece of equipment is compatible with various chain sizes and is primarily used in conjunction with coupling links.

Technical specifications

  • Material: Grade 80 (G80)
  • Finish: Yellow (may vary)
  • Factor of Safety: 4:1
  • Conforms to: BS EN 1677
  • Product Codes and Specifications:
  • SWL (Tonne): 1.5, A (MM): 100, B (MM): 55, C (MM): 12, D (MM): 59
  • SWL (Tonne): 3.2, A (MM): 119.5, B (MM): 65, C (MM): 14, D (MM): 69
  • SWL (Tonne): 4, A (MM): 138, B (MM): 78, C (MM): 17, D (MM): 78
  • SWL (Tonne): 8, A (MM): 160, B (MM): 87, C (MM): 23, D (MM): 93
  • SWL (Tonne): 11.5, A (MM): 181, B (MM): 103, C (MM): 25, D (MM): 108
  • SWL (Tonne): 30, A (MM): 260, B (MM): 144.5, C (MM): 42.5, D (MM): 149

    • Compatibility and accessories

  • Compatible with 7-8MM single leg chain slings
  • Compatible with 6MM two-leg chain slings

    • Usage

    This master link is primarily used in the lifting gear industry for chain slings, acting as a crucial connecting point for lifting operations.

    Other information

  • Test certificate will be supplied via email

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • NF certification
      NF138
    • Warranty
      1 year(s)
    • Weight
      100 g
    • Maximum load
      3200 kg
    • Material
      Two-material
    • ManoMano Reference
      ME27131501
    • MMID
      418845217998
    • Product code
      SFYASFML14
    • EAN
      0600988485945
