Grade 8 Master Link Ring with Flat Welded 40MM (G80 30 Ton Chain Sling Lifting Component)

Sold by SecureFix Direct

You may also like

10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle
#1 in sales

12mm STAINLESS STEEL 316 (A4) D shackle

1
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free shipping
Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)SECUREFIX DIRECT

Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)

1
Free shipping
3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"SECUREFIX DIRECT

3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"

Free shipping
Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic MultiSECUREFIX DIRECT

Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic Multi

Free shipping
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free shipping
22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4SECUREFIX DIRECT

22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4

Free shipping
25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4SECUREFIX DIRECT

25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4

Free shipping
4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing TestedSECUREFIX DIRECT

4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing Tested

Free shipping
Jaw Jaw Turnbuckle Stainless Steel + Centre Bar M20 (Straining Screw Barrel Open Body Tensioner)SECUREFIX DIRECT

Jaw Jaw Turnbuckle Stainless Steel + Centre Bar M20 (Straining Screw Barrel Open Body Tensioner)

Free shipping
28MM 11.8 Ton Grade 80 FRAM Single Master Link 28.B.7 - G80 Chain Lifting Gear EN1677-4SECUREFIX DIRECT

28MM 11.8 Ton Grade 80 FRAM Single Master Link 28.B.7 - G80 Chain Lifting Gear EN1677-4

Free shipping
Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)SECUREFIX DIRECT

Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)

Free shipping
7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing TestedSECUREFIX DIRECT

7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing Tested

Free shipping
Safety Pin Bow Shackle - 12 Ton Galvanised 35MM 12000KG OmegaSECUREFIX DIRECT

Safety Pin Bow Shackle - 12 Ton Galvanised 35MM 12000KG Omega

Free shipping
13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"SECUREFIX DIRECT

13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"

1
Free shipping
Heavy Duty Tow Strap 12 Ton 5 Metre with Shackles (12T 5M Recovery Towing Strop)SECUREFIX DIRECT

Heavy Duty Tow Strap 12 Ton 5 Metre with Shackles (12T 5M Recovery Towing Strop)

Free shipping
X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting Towing

Free shipping
Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lbWINCHMAX

Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lb

Free shipping
Aluminiuum Adjustable Boat Seat Pedestal Sliding (High Base Marine Fishing Speedboat)SECUREFIX DIRECT

Aluminiuum Adjustable Boat Seat Pedestal Sliding (High Base Marine Fishing Speedboat)

Free shipping

Compare with similar items

Product information

Description

General description

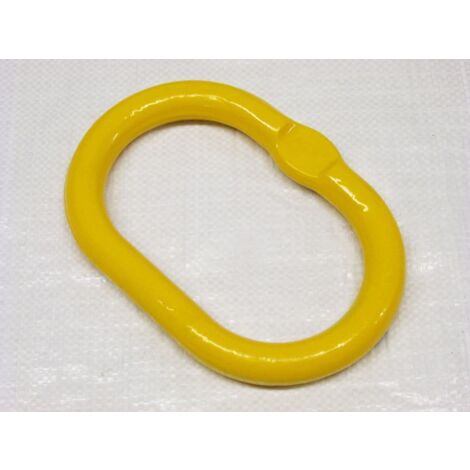

This Grade 8 Master Link Ring with Flat Welded design is a high-quality lifting component, specifically engineered for use in the lifting gear industry. It serves as the main connecting point on chain slings, suitable for both single and two-leg chain sling assemblies. This versatile piece of equipment is compatible with various chain sizes and is used in conjunction with coupling links.

Technical specifications

  • Material: Grade 80 (G80)
  • Finish: Yellow (may vary)
  • Factor of Safety: 4:1
  • Conforms to: BS EN 1677
  • Product Codes and Specifications:
  • SWL (Tonne): 1.5, A (MM): 100, B (MM): 55, C (MM): 12, D (MM): 59
  • SWL (Tonne): 3.2, A (MM): 119.5, B (MM): 65, C (MM): 14, D (MM): 69
  • SWL (Tonne): 4, A (MM): 138, B (MM): 78, C (MM): 17, D (MM): 78
  • SWL (Tonne): 8, A (MM): 160, B (MM): 87, C (MM): 23, D (MM): 93
  • SWL (Tonne): 11.5, A (MM): 181, B (MM): 103, C (MM): 25, D (MM): 108
  • SWL (Tonne): 30, A (MM): 260, B (MM): 144.5, C (MM): 42.5, D (MM): 149

    • Compatibility and accessories

  • Compatible with 26MM single leg chain slings
  • Compatible with 22MM two leg chain slings

    • Other information

  • Test certificate will be supplied via email
  • Free delivery available

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • NF certification
      NF138
    • Warranty
      1 year(s)
    • Weight
      100 g
    • Maximum load
      80 kg
    • Material
      Two-material
    • ManoMano Reference
      ME27139331
    • MMID
      659037549750
    • Product code
      SFYASFML40
    • EAN
      0600988485983
