Grohe Rapid SL Support Frame for wall-hung toilets (38528001)

You may also like

Compare with similar items

Often purchased together

Product information

Description

General description

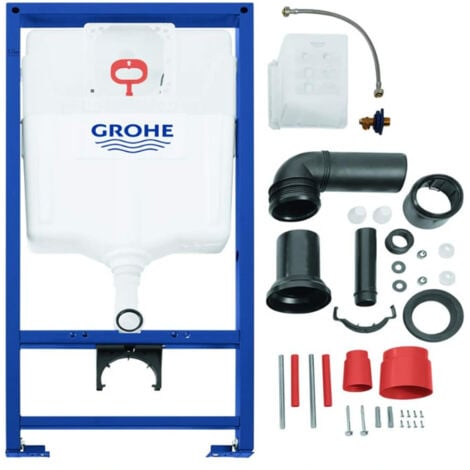

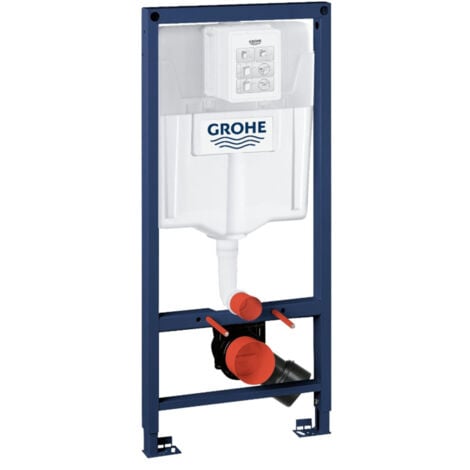

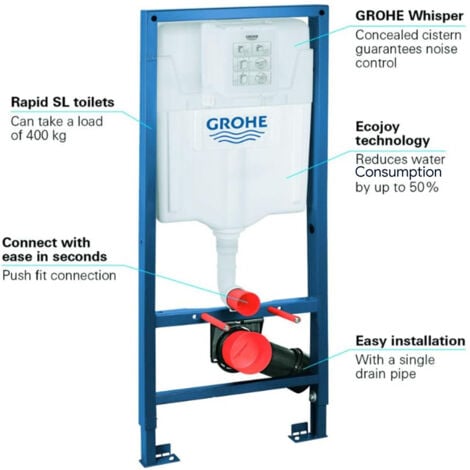

The GROHE Rapid SL 38528001 is a robust and TÜV-approved concealed WC installation frame designed for wall-hung toilets. With an installation height of 1.13 m, it features an integrated GD2 dual-flush cistern, ensuring efficient flushing performance while maintaining a modern aesthetic in bathrooms.

Technical specifications

  • Height: 1.13 m
  • Length: 14.4 cm
  • Width: 117.2 cm
  • Depth: 14.4 cm
  • Weight: 12.06 kg
  • Material: Powder-coated steel
  • Cistern: GROHE GD2 dual flush (6–9 L)
  • Water supply connection: ½″ (left, right, or back)
  • Outlet bend: Ø 90 mm with depth adjustment and Ø 90/110 mm reducer
  • Fixing bolts: 2 bolts with 180/230 mm spacing
  • Constructor warranty: 5 years
  • Compatibility and accessories

  • Compatible with wall-hung toilets on solid or studded walls
  • Optional accessories: 4.5 L adapter, noise protection set, flush pipe extensions
  • For on-the-wall installations, wall brackets (sold separately) are required
  • For mounting small flush plates, revision shaft (sold separately) is needed
  • Installation

  • Designed for fast and secure installation
  • Requires front wall brackets (sold separately)
  • Usage

  • Ideal for residential or commercial bathrooms
  • Supports efficient and powerful flushing
  • Flexible connection options adapt to various site conditions
  • Other information

  • Water regulations: ACS approved
  • Features

    • Brand
      GROHE
    • NF certification
      NF
    • Warranty
      10 year(s)
    • Origin
      Made in Germany
    • Chassis height
      113 cm
