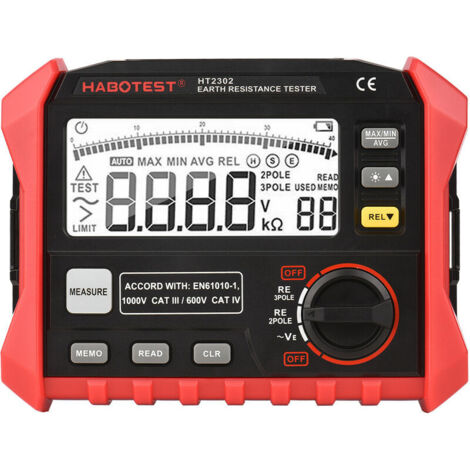

HABOTEST HT2302 Digital Earth Resistance Tester 0 Ohm to 4K Ohm 100 Groups Data Storage LCD Display Backlight with Carrying Case,Black and Red

~~£255.99~~

Product information

Description

General description

The HABOTEST HT2302 Digital Earth Resistance Tester is designed for testing the earth resistance of various power distribution lines, indoor wiring, electrical equipment, and telecommunications. It features two measurement methods: bipolar and tripolar, making it versatile for different applications. The tester is equipped with a large backlit LCD display for easy reading, even in low light conditions, and can store up to 100 groups of data, ensuring that measurements are retained even during power failures.

Technical specifications

Material: ABS

Color: Black & Red

Power supply: 8 * 1.5V AA battery (not included)

Measurement methods: Constant current conversion method for ground resistance, average digital rectification method for earth voltage measurement

Test current frequency: Approximately 800Hz

Test current: Approximately 3mA

Operating Condition: 0℃~40℃, relative humidity less than 85%

Storage Condition: -10℃~50℃, relative humidity less than 85%

Item Size: Approx. 19*14*7cm / 7.48*5.51*2.75in

Item Weight: Approx. 586g / 20.67oz

Package Weight: 2150g / 75.83oz

Package Size: 34*27*9.5cm / 13.38*10.62*3.74in

Compatibility and accessories

1 * Earth Resistance Tester

1 * Red Test Lead (15m)

1 * Green Test Lead (10m)

1 * Black Test Lead (5m)

2 * Auxiliary Ground Bar

1 * Carrying Bag

1 * User Manual

Installation

Please read the user manual for more information before use.

Usage

The HT2302 is suitable for measuring earth resistance and voltage in electrical systems and industrial equipment. It provides maximum, minimum, or average value readings and features a relative measurement mode. The automatic shutdown function helps save energy.

Features

Brand
GOTRAYS
Measured function(s)
Resistance
Height
7 cm
Material
Acrylonitrile butadiene styrene (ABS)
Display mode
Digital
Backlighting
Yes
Voltage
5 V
ManoMano Reference
ME93911364
MMID
770756084708
Product code
GB-2027206
EAN
7424106103633
