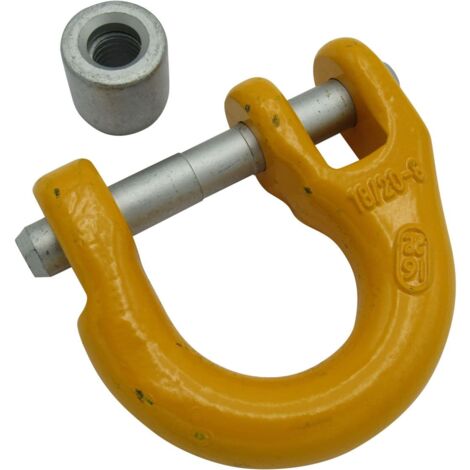

Half Coupling Link Grade 8 with Pin & Sleeve Set 20MM (12.5T Lifting Chain Sling Component)

Name: Half Coupling Link Grade 8 with Pin & Sleeve Set 20MM (12.5T Lifting Chain Sling Component)
Brand: SECUREFIX DIRECT
SKU: SFYASHCL20
Price: 27.45 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Grade 80 Half Coupling Link designed for use with 20MM chains, this high-quality lifting gear component is essential in the lifting gear industry for chain slings. It is compatible with fittings that require a half coupling lock, such as coupling self-locking hooks and insulated swivels.

Technical specifications

Material: Grade 80

Finish: Yellow (Colour may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Available Product Codes and Specifications:

SFYASHCL07: SWL 2 Ton, A 17.5 MM, B 29.5 MM, C 22.5 MM, D 9 MM, E 13 MM, F 7 MM, G 6 MM, H 2 MM, I 4.5 MM, J 2 MM, K 6 MM, L 5 MM, M 6.5 MM

SFYASHCL10: SWL 3.15 Ton, A 24.5 MM, B 34.5 MM, C 26.5 MM, D 11 MM, E 16 MM, F 10 MM, G 8 MM, H 8.5 MM, I 5 MM, J 1.5 MM, K 7 MM, L 6 MM, M 10 MM

SFYASHCL13: SWL 5.3 Ton, A 29.5 MM, B 45 MM, C 36 MM, D 16 MM, E 18 MM, F 13.5 MM, G 10 MM, H 9.5 MM, I 6.5 MM, J 3 MM, K 9 MM, L 7 MM, M 12 MM

SFYASHCL16: SWL 8 Ton, A 36 MM, B 48.5 MM, C 39 MM, D 19 MM, E 21 MM, F 16.5 MM, G 12 MM, H 11 MM, I 9 MM, J 4 MM, K 12 MM, L 9 MM, M 15.5 MM

SFYASHCL20: SWL 12.5 Ton, A 41.5 MM, B 58 MM, C 45 MM, D 22 MM, E 30 MM, F 18.3 MM, G 15.5 MM, H 13 MM, I 10 MM, J 3.5 MM, K 13.5 MM, L 11 MM, M 17 MM
