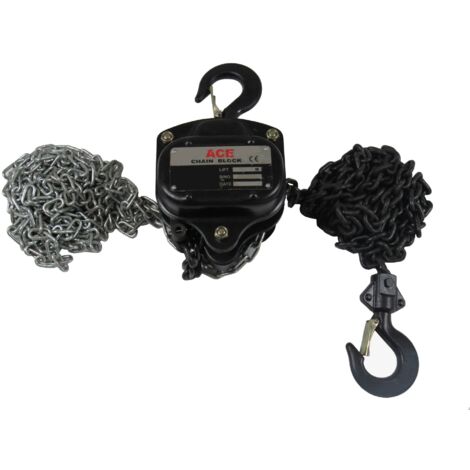

Heavy Duty Chain Block and Tackle with Bag 0.5 Ton 3 Metre (500KG 0.5T 3M Lifting Hoist)

Product out of stock

Product information

Description

General description

Heavy Duty Chain Block and Tackle with Bag is designed for lifting loads up to 0.5 Ton (500KG) with a maximum lift height of 3 Metres. This chain block features a lightweight steel construction for easy transport and use, along with a chain guide that ensures smooth operation. The safety hooks are drop forged and heat treated for enhanced durability and safety. Each unit is supplied with a test certificate sent via email.

Technical specifications

Safe Working Load: 0.5 Ton (500KG)

Lift Height: 3 Metres

Minimum Distance Between Hooks: 290MM

Chain Falls: 1

Load Chain Diameter: 5MM

Hand Chain Length: 2.8 Metres

Factor Of Safety: 4:1

Chain Bag Height/Depth: 230MM

Chain Bag Length: 110MM

Chain Bag Width: 90MM

Bolt Length: 60MM

Bolt Diameter: 6MM

Compatibility and accessories

Compatible with chain block sizes: 0.5 Ton 3 Metre, 6 Metre & 10 Metre

Usage

Ideal for lifting applications in various settings, including theatre and stage

Chain bag helps keep slack chain organized and prevents hazards

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Color may vary; contact for specific color requests

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
500 kg
Work cable length
2.8 m
Material
Two-material

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
