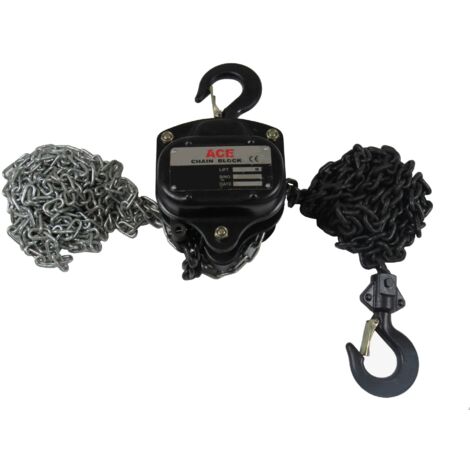

Heavy Duty Chain Block and Tackle with Bag 5 Ton 3 Metre (5000KG 5T 3M Lifting Hoist)

Name: Heavy Duty Chain Block and Tackle with Bag 5 Ton 3 Metre (5000KG 5T 3M Lifting Hoist)
Brand: SECUREFIX DIRECT
SKU: SFACECB53/SFACEB06
Availability: OutOfStock

Product out of stock

Product information

Description

General description

Heavy Duty Chain Block and Tackle with Bag is designed for lifting heavy loads with a safe working load of 5 tons (5000KG) and a lift height of 3 metres (10 feet). This chain block features a lightweight steel construction for ease of use and transport, along with a chain guide that ensures smooth chain operation. The safety hooks are drop forged and heat treated for enhanced safety and durability. Each unit is supplied with a test certificate sent via email.

Technical specifications

Safe Working Load: 5 Ton (5000KG)

Lift Height: 3 Metre (10 Foot)

Minimum Distance Between Hooks: 570MM

Chain Falls: 2

Load Chain Diameter: 10MM

Hand Chain Length: 2.8 Metres

Factor Of Safety: 4:1

Chain Bag Height/Depth: 300MM

Chain Bag Length: 230MM

Chain Bag Width: 160MM

Bolt Length: 91MM

Bolt Diameter: 12MM

Compatibility and accessories

Chain Bag is suitable for Chain Block sizes: 5 Ton 3M, 6M, 10M, 10 Ton 3M

Usage

Ideal for keeping slack chain from the chain block neat and tidy, preventing potential hazards by ensuring the slack chain is not on the floor.

Black colour makes it suitable for use in theatre and stage applications.

Other information

Product Code: SFACECB53/SFACEB06

Colour may vary; contact for specific colour requests.

Features

Brand
SECUREFIX DIRECT
NF certification
NF230
Warranty
1 year(s)
Maximum load
5000 kg
Height
30 cm

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
