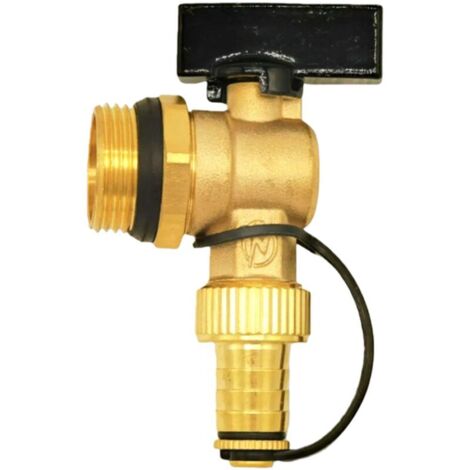

High-flow DN20 brass drain valve – ball valve with sealing cap, male thread

~~£51.97~~

Of which environmental contribution £0.10 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

This DN20 solid brass drain valve is specially designed for underfloor heating systems, boilers, or hydraulic circuits requiring fast and safe drainage. Its internal ball mechanism ensures smooth flow control and a perfect seal. Made of heat- and corrosion-resistant raw brass, it offers exceptional durability. The removable cap ensures a hermetic seal of the circuit when not in use, preventing any leaks or air infiltration.

Technical Specifications

Type: Purge valve / drain tap
Size: DN20
Material: Solid brass (natural finish)
Thread: Standard male (screw connection)
Mechanism: High-flow internal ball
Operating temperature: -10°C to +120°C
Maximum pressure: Up to 16 bar
Shape: Straight, with sealing cap

Compatibility and Accessories

Compatible with underfloor heating systems, boilers, and hot water circuits.
Suitable for standard threaded fittings in copper, brass, or steel.
Can be used as a purge or drain valve depending on the installation system.

Application

Thanks to its optimized flow rate and compact design, this valve allows for quick and clean purging of domestic and industrial systems. Its brass body ensures maximum pressure resistance and a long service life.

Ideal for heating, ventilation and plumbing applications, it guarantees perfect sealing and easy maintenance.

Features

Brand
TEHTUY
Colour
Gilded
Product finish
Untreated
Pressure
16 bar
Pcs per pack
1 part(s)
Warranty
1 year(s)
Material
Brass
Connection configuration
F-M-F
Availability of spare parts
1 year(s)
Pipe thread size
1/4" (8x13)
Shape
Round
Height
10 mm
Body material
Metal
Max pressure
16 bar
Maximum operating temperature
120 °C
Valve category
Shut-off valve
Valve use
Central heating
ManoMano Reference
ME98861817
MMID
266465567902
Product code
ZSino-05808
EAN
6240449295382
