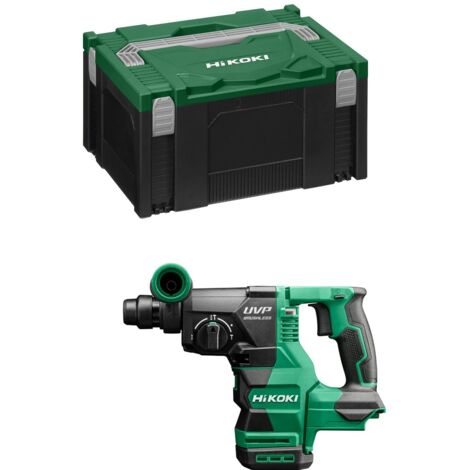

HIKOKI DH3628DAW2Z 36v 3 function hammer SDS plus

Name: HIKOKI DH3628DAW2Z 36v 3 function hammer SDS plus
Brand: HIKOKI
SKU: DH3628DAW2Z
Price: 246 GBP
Availability: InStock
Rating: 4.13 (8 reviews)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Howe Tools and 1 other seller

Product information

Description

General description

HiKOKI DH3628DA is a powerful 36V MultiVolt Brushless 28mm SDS-Plus Rotary Hammer Drill designed for versatility and comfort. It features three operational modes: rotary hammer, drill only, and hammer only, with a selectable chisel position. The ergonomic soft grip handle ensures optimal control and comfort during use. The tool is equipped with Reactive Force Control (RFC) to prevent twisting and potential injury when the bit is overburdened, and User Vibration Protection (UVP) minimizes vibration levels for increased operator comfort.

Technical specifications

No Load Speed: 0 - 950 /min

Full Load Impact Rate: 4,300 - 0 /min

Impact Energy (EPTA 5.0): 3.2 J

Capacity: Concrete Drill Bit (with Dust extractor): 4.3 mm - 20 mm

Capacity: Concrete Drill Bit: 3.4 - 28 mm

Capacity: Mild Steel (without Dust extractor): 13 mm

Capacity: Wood: 32 mm

Concrete Core Bit: 25 - 50 mm

Battery Voltage (DC): 36V

Motor Type: Brushless

Weight: 4.2 kg

Tool Length: 334 mm

Tool Width: 91 mm

Tool Height: 232 mm

Compatibility and accessories

Compatible with Cyclon Dust Extraction Unit with HEPA filter

Standard Equipment: 1x HiKOKI DH3628DA 36V MultiVolt Brushless 28mm SDS-Plus Rotary Hammer Drill Body Only

1x Side Handle

Usage

Soft-start control for comfortable drilling without slipping

LED LEVEL indicates if the tool is held straight for precise drilling

Auto-stop function records and stores drilling time for consistent hole depth

Other information

Low vibration handle (LVH) for optimal work comfort and grip

Double-Layer Switch Handle: Yes

Double-Layer Side Handle: Yes

One-Push Action for Quick Bit Mounting: Yes

Constant Speed Control: Yes

Normal / Reverse Mode Change: Yes

Reactive Force Control Function: Yes

Dust Extractor System Availability: Yes

Features

Brand
HIKOKI
Power
770 W
Strike force
3.2 J
Insertion type
SDS plus
Impact energy
3.2 J
Environmental certification
NF Environment
Origin
Made in Germany
Power adapter included
No
Power source
Cordless
With integrated lighting
Yes
Battery or cell included
No
Safety clutch
Yes
Max drilling diameter in concrete
28 mm
Max. diameter for drilling wood
32 mm
Max diameter for metal drilling
13 mm
Chiselling function
Yes
Drilling capability
Yes
Hammer function
Yes
Height
23.2 cm
Charger included
Without charger
Width
9.1 cm
Operating Mode
Electric
Weight
6.4 kg
Presence of vibration damping
Yes
Battery technology
Li-ion
Voltage
36 V
Chuck
SDS plus
Type of electric motor
Brushless
Sold as a set
Yes
Blows per minute
3000 cpm
ManoMano Reference
ME73044363
MMID
535180952541
Product code
DH3628DAW2Z
EAN
3598648493430

Customer reviews

4,1

/ 8 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 14/09/2026, Germany

Tried it once so far, went well.

MManoMano Customer

Published on 16/12/2025, France

Excellent machine, received quickly and at the best price.

JJUAN

Pro Customer

Published on 30/11/2025, Spain

Very heavy and doesn't have 18v batteries

1 person found this helpful

CChristophe

Pro Customer

Published on 23/11/2025, France

Good product

PPascal

Pro Customer

Published on 19/02/2024, France

Perfect for me and my batteries.

1 person found this helpful

Rotary hammer buying guide

Advice from our experts

Read our guide

Visit the HIKOKI store

We are Hikoki (formerly HITACHI). And we've been creating high-performance power tools for 70 years. We believe that innovation knows no bounds. We're constantly looking for ways to improve our tools, making them more powerful, more efficient, more ergonomic. We do this to make every task as simple and comfortable as possible for professionals. A reason to innovate, which continually inspires us and gives us new ideas on how to improve... We've redesigned and eliminated some of the major wearing parts for optimum power. We've invented ways to make our hand-held power tools even more compact and lightweight. And we've managed to make them even more durable. And by the time we've reached our goal, we've already come up with new innovations to improve and facilitate new tasks. That's what motivates us and keeps us one step ahead.
