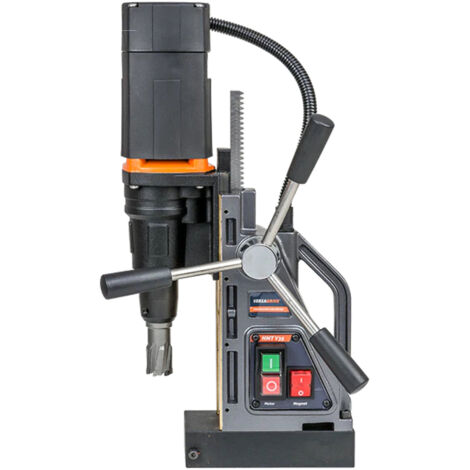

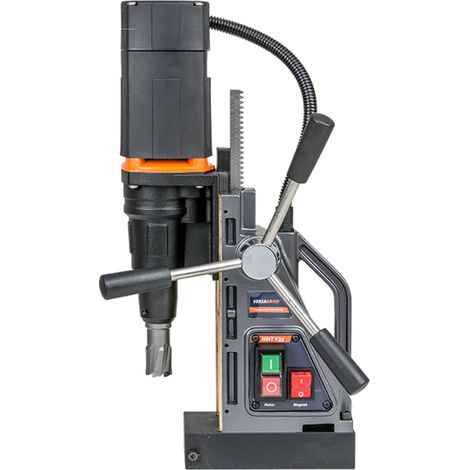

Holemaker Technology V35 35mm Compact Mag Drill 240v Or 110v - 110V

Product out of stock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Product information

Description

General description

The HMT VersaDrive V35 is the first UK-built portable drilling machine designed for high-performance, low-maintenance, industrial-quality drilling up to 35mm in diameter. With a 140mm stroke and a maximum cutter length of 110mm, it seamlessly integrates with the VersaDrive modular cutting system, offering exceptional flexibility as a compact magnet drill. It is supplied with handles, a heavy-duty metal guard system, a VersaDrive Rapid-Lock adapter, a STAKIT Base 200 Case, and a gravity-fed coolant system.

Technical specifications

Cutter size range: 12 - 35mm TCT

Max cutter capacity: 35mm TCT

Max cutter length: 110mm

Twist drill capacity: 12mm

Max countersinking: 25mm

Length: 220mm

Width (including handles): 173mm

Height (min-max): 305-445mm

Stroke: 140mm

Weight: 9.5kg

Magnet dimensions (L x W): 160 x 80mm

Magnetic adhesion: 1000 kgs

Motor power: 850w

Total power: 900w

Speed RPM (no load): 750 min-1

Spindle: 3/4" Weldon

Arbor: Integral "Weldon"

Coolant system: Gravity oil fed

Other information

Warranty: 2 years (when registered)

Features

Brand
HMT
Colour
Black
Safety clutch
Yes
Width
17.3 cm
Length
22 cm
Material
Metal
Weight
9.5 kg
Power
900 W
Sold as a set
Yes
ManoMano Reference
ME51239736
MMID
484405491303
Product code
850035-110
EAN
5060451529517
