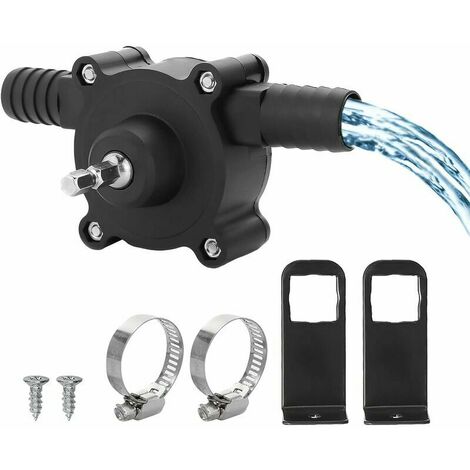

Home Garden Water Pump Mini Water Pump Portable Self-Priming Electric Borehole Pump with 6. 35Mm Shaft

Product information

Description

General description

The Home Garden Water Pump is a portable self-priming electric borehole pump designed for efficient water transfer. It features a compact design, making it suitable for various applications, including gardening and irrigation.

Technical specifications

Color: Black

Material: Engineering Plastics

Product Size: 126 x 63 mm

Pump rod: 6.35 mm hex rod

Water inlet/outlet Inner diameter: 16 mm

Water inlet/outlet Outer diameter: 19 mm

Working temperature: 5°C - 49°C

Compatibility and accessories

Compatible with electric drills

Package includes:

1 x Borehole Pump

2 x Hose Clamps

2 x Bracket

2 x Screws

1 x English User Manual

Installation

Surface mounting is recommended for safety and ease of use.

Ensure the inlet hose is tight and as short as possible, not exceeding 9 feet (2.75 m).

Usage

For optimum priming and long life, apply a small amount of lubricating oil into the pump inlet before use and flush with water after each use.

When pumping abrasive fluids or liquids containing solids, attach a strainer to the inlet to prolong the life of the pump.

Set the rotation speed between 1500 rpm and 3000 rpm for optimal performance; faster speeds yield higher lift and throughput.

Monitor the inlet tubing to ensure fluid is drawn into the pump within 15-20 seconds; if not, check the inlet tube fitting.

No dry running is allowed; if the pump does not prime, check for kinks or clogs in the hoses.

Features

Brand
KEYOUNY
Length
12.6 cm
Width
6.3 cm
Height
12.6 cm
Voltage
220 V
