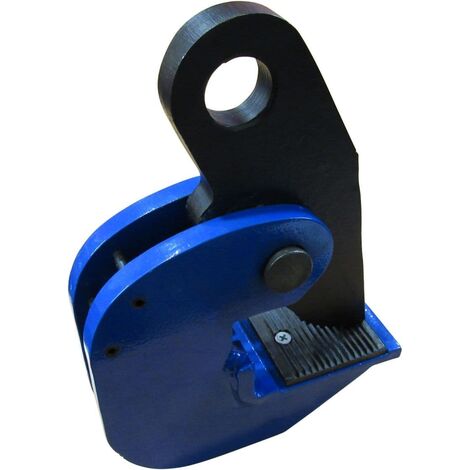

Horizontal Plate Lifting Clamp 1.5 Ton (0-30MM Grip Sheet Non Slip 1500KG)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account
Sold by SecureFix Direct

You may also like

210229 12 V Electric Winch 907 KG Wire Remote Control vidaXLVIDAXL
4 options

210229 12 V Electric Winch 907 KG Wire Remote Control vidaXL

411
£76.99
Free shipping
210230 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead vidaXLVIDAXL
4 options

210230 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead vidaXL

411
Free shipping
Faithfull Brick LifterFAITHFULL
2 options

Faithfull Brick Lifter

2
Free shipping
141628 Hand Winch 360 kg vidaXLVIDAXL
4 options

141628 Hand Winch 360 kg vidaXL

525
Free shipping
141629 Hand Winch 540 kg vidaXLVIDAXL
4 options

141629 Hand Winch 540 kg vidaXL

525
Free shipping
141631 Hand Winch 1130 kg vidaXLVIDAXL
4 options

141631 Hand Winch 1130 kg vidaXL

525
Free shipping
WoodXpert Log HookFISKARS

WoodXpert Log Hook

7
KERB CLAMP FOR LIFTING HANDLING CONCRETE GRANIT KERB STONES MONTOLIT 16MONTOLIT

KERB CLAMP FOR LIFTING HANDLING CONCRETE GRANIT KERB STONES MONTOLIT 16

4
£382.95
Free shipping
143995 Hand Winch with Strap 1130 kg vidaXLVIDAXL
4 options

143995 Hand Winch with Strap 1130 kg vidaXL

179
Free shipping
143996 Hand Winch with Strap 1587 kg vidaXLVIDAXL
4 options

143996 Hand Winch with Strap 1587 kg vidaXL

179
Free shipping
143997 Hand Winch 1360 kg vidaXLVIDAXL
4 options

143997 Hand Winch 1360 kg vidaXL

525
Free shipping
Lifting Beam Clamp with Shackle 1 Ton (1T Rigging Adjustable Girder Clamp Hoist)SECUREFIX DIRECT

Lifting Beam Clamp with Shackle 1 Ton (1T Rigging Adjustable Girder Clamp Hoist)

Free shipping
Lifting Beam Clamp 3 Ton (3T Rigging Support Girder Clamp Structural Overhead Hoist)SECUREFIX DIRECT

Lifting Beam Clamp 3 Ton (3T Rigging Support Girder Clamp Structural Overhead Hoist)

Free shipping
88 Brick TongsMARSHALLTOWN

88 Brick Tongs

Free shipping
210231 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead Wireless Remote Control vidaXLVIDAXL
4 options

210231 12 V Electric Winch 1360 KG with Mounting Plate Roller Fairlead Wireless Remote Control vidaXL

411
£108.99
Free shipping
0.75 Ton 0-25MM Horizontal Plate Lifting Clamp - 750KG Grip LiftSECUREFIX DIRECT

0.75 Ton 0-25MM Horizontal Plate Lifting Clamp - 750KG Grip Lift

Free shipping
Precast Concrete Lifting Clutch 1.5T - 2.5T &x28Ring Panel Device Equipment&x29SECUREFIX DIRECT

Precast Concrete Lifting Clutch 1.5T - 2.5T &x28Ring Panel Device Equipment&x29

Free shipping
Precast Concrete Lifting Clutch 2.5T (Grade 80 Lift Ring Panel Equipment Anchor)SECUREFIX DIRECT

Precast Concrete Lifting Clutch 2.5T (Grade 80 Lift Ring Panel Equipment Anchor)

Free shipping
Quick Release Manhole Lifting Pin 2T (Galvanised Pipe Ring Chamber Eyes)SECUREFIX DIRECT

Quick Release Manhole Lifting Pin 2T (Galvanised Pipe Ring Chamber Eyes)

Free shipping
Electric Winch PVC Black vidaXLVIDAXL
4 options

Electric Winch PVC Black vidaXL

411
Free shipping

Compare with similar items

Product information

Description

General description

These Horizontal Plate Lifting Clamps are designed for lifting sheet materials in a horizontal position. They have a lifting capacity of 1.5 tons when used as a pair and feature a non-slip design that ensures stability during lifting and lowering.

Technical specifications

  • Lifting Capacity: 1.5 Ton (when used as a pair)
  • Jaw Opening: 0-30MM
  • A (min): 170MM
  • A (max): 203MM
  • B: 165MM
  • C: 130MM
  • F: 42.8MM
  • G: 30.1MM
  • H: 52.4MM
  • I: 15.9MM
  • Weight: 3.77 kg

    • Other information

  • Conforms to BS EN 13155
  • Minimum loading weight is 20% of SWL
  • Minimum thickness is 20% of the jaw opening plus the minimum opening
  • Test certificate included (sent via email)
  • Product code: SFHLC1.5

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • Power source
      Manual
    • Suitable for
      Metal
    • Material
      Two-material
    • Weight
      3770 g
    • ManoMano Reference
      ME83903771
    • MMID
      141315713968
    • Product code
      SFHLC1.5
    • EAN
      0600988551855
