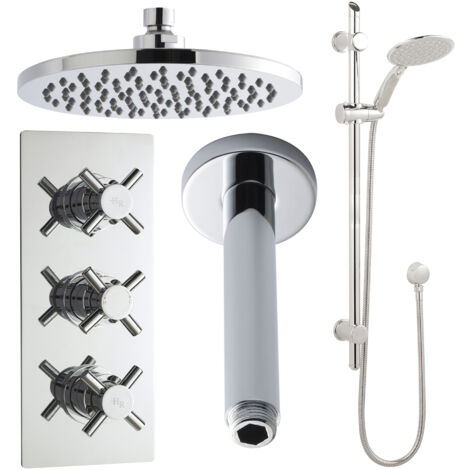

Hudson Reed Kristal Triple Concealed Mixer Shower with Modern Shower Kit and Fixed Head

Name: Hudson Reed Kristal Triple Concealed Mixer Shower with Modern Shower Kit and Fixed Head
Brand: HUDSON REED
SKU: KRI3211+JTY004+HEAD49+ARM15
Price: 340.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

Hudson Reed Kristal Triple Concealed Mixer Shower features a modern design and comes complete with a Shower Rail Kit, Shower Valve, Shower Head, Shower Handset, Shower Arm, Shower Hose, and Outlet elbow. It is constructed from high-quality materials including Brass, ABS Plastic, and Stainless Steel, ensuring durability and accurate flow control.

Technical specifications

Shower Type: Thermostatic

Shower Valve Position: Concealed

Shower Valve Outlets: 2

Shower Kit Height: 740 mm

Shower Head Width: 200 mm

Shower Head Depth: 200 mm

Minimum Pressure: 0.1 Bar

Maximum Pressure: 3.0 Bar

Inlet Connection Size: 1/2 BSP

Flow Rate @ 0.1 Bar: 5.5 l/min

Flow Rate @ 0.5 Bar: 14 l/min

Flow Rate @ 1.0 Bar: 20 l/min

Flow Rate @ 2.0 Bar: 29 l/min

Flow Rate @ 3.0 Bar: 44 l/min

Colour: Chrome

Brand: Hudson Reed

Collection: Kristal

Style: Modern

Guarantee: 20 years against faulty workmanship or materials (1 year on serviceable and moving parts)

Compatibility and accessories

Suitable for all systems: gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers

Shower Head requirement: Pressure minimum 0.1 bar

Installation

Valve can be fitted vertically or horizontally

The cartridge is fully reversible, allowing for easy adjustment if hot and cold supplies are reversed

Usage

Thermostatic control maintains temperature to +/- 2 to 3 degrees even with fluctuating water pressure

In the event of hot or cold water failure, the valve will shut down the water supply, providing full thermal protection and preventing scalding

Other information

EAN Barcode: 5055146151739, 5055146163961, 5055369016013, 5055369013289

Manufacturer Part Number(s): KRI3211, JTY004, HEAD49, ARM15

Features

Brand
HUDSON REED
Material
Brass
With waste included
Yes
With anti-limescale function
Yes
Max. flow rate
44 l/min
Intended use of the tap
Shower
Diameter
200 mm
Hand shower included
Yes
Shape
Rounded
Height
74 cm
Flow limiter
Yes
Temperature limiter
Yes
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Max pressure
3 bar
Pressure
3 bar
Depth
20 cm
Concealed tap
Yes
Wall-mounted tap
Yes
38°C Safety
Yes
Tap head only
Yes
Cool body thermostatic
Yes
Type of installation method
For mounting
Tap type
Single-lever mixer
Installation type
With stand
ManoMano Reference
ME15402809
MMID
159565773116
Product code
KRI3211+JTY004+HEAD49+ARM15
EAN
5055804699009
