Product information
Description

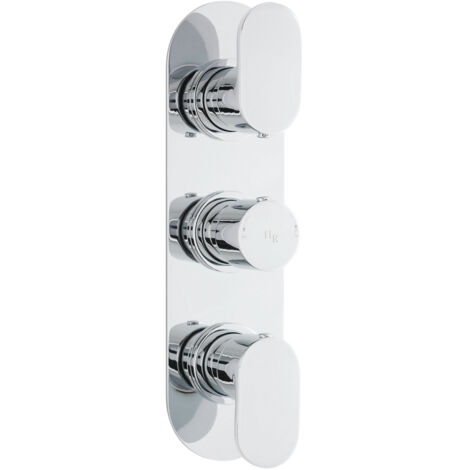

The perfect way to finish your shower, this Hudson Reed Reign Round Concealed Shower Valve is not only beautifully designed but is also fully functional too. Featuring a thermostatic control, even if the water pressure fluctuates it allows for accurate flow control, giving you the perfect shower experience. Safety is also key for this valve, as in the event of hot or cold water failure, the valve will automatically shut down the water supply and lower the risk of scalding.
Suitable for a range of systems, the valve can be installed both vertically and horizontally, it also has a cartridge installed in order to minimise calcium build up, even with everyday use in hard water areas.
With this particular valve, you will receive a 20 year guarantee, designed to give you peace of mind.
Features and Benefits:
- Shower valve supplies water to 2 outlets
- Manufactured from high quality brass & ABS
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 degree C even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- Triple handle valve only
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180 degree and replace
- WRAS approved product
- TMV2 Approved
- Guarantee: 20 years against faulty workmanship or materials (1 year on serviceable and moving parts), please see manufacturer guarantee policy for more information
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Controls | 3 |
| Shower Valve Position | Concealed |
| Valve Shape | Oval |
| Handle Type | Knob/Lever |
| Shower Valve Outlets | 2 |
| Minimum Pressure | 0.1 Bar |
| Shower Valve Height | 280mm |
| Shower Valve Width | 120mm |
| Shower Valve Depth | 74.5mm |
| Inlet Connection Size | 15mm & 22mm |
| Valve Orientation | Portrait |
| Material | Brass,ABS |
| Colour | Chrome |
| Brand | Hudson Reed |
| Collection | Reign |
| Style | Modern |
| Market | Domestic |
| WRAS Approved | Yes |
| WRAS Approval Number | 250602040 |
| TMV2 Approved | Yes |
| TMV2 Approval Number | 2603035 |
| Flow Rate @ 0.1 Bar | 5.5 l/min |
| Flow Rate @ 0.5 Bar | 14 l/min |
| Flow Rate @ 1.0 Bar | 20 l/min |
| Flow Rate @ 2.0 Bar | 29 l/min |
| Flow Rate @ 3.0 Bar | 44 l/min |
| Weight | 3.45 Kg |
| EAN Barcode | 5055369010158 |
| Manufacturer Part Number(s) | REI3411 |
Features
- BrandHUDSON REED
- ColourCopper
- Warranty1.66667 year(s)
- MaterialBrass
- Intended use of the tapShower
- Water savingNo
- ShapeOval
- Height28 cm
- Tap activation mechanismMechanical
- Thermostatic mixerYes
- Weight3.4 kg
- Pressure3 bar
- Concealed tapYes
- Wall-mounted tapYes
- 38°C SafetyYes
- Tap head onlyYes
- Type of installation methodFor mounting
- Tap typeSingle-lever mixer
- Installation typeWall mounted
- ManoMano ReferenceME72765
- MMID988625148831
- Product coderei3411
- EAN5055369010158
