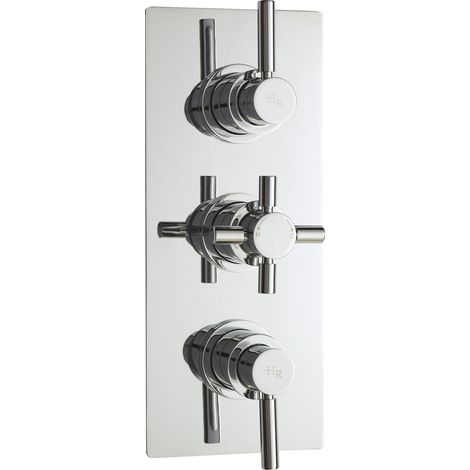

Hudson Reed Tec Pura Plus Concealed Shower Valve With Diverter - Chrome

Name: Hudson Reed Tec Pura Plus Concealed Shower Valve With Diverter - Chrome
Brand: HUDSON REED
SKU: A3023
Price: 265.95 GBP
Availability: InStock

Sold by Heat & Plumb and 1 other seller

Product information

Description

General description

Hudson Reed is renowned for designing and manufacturing high-quality bathroom accessories, equipment, and furniture. The Tec Pura Plus Concealed Shower Valve with Diverter combines modern style with essential functionality, seamlessly coordinating with your bathroom decor. This valve offers precise water flow control and thermostatic regulation, ensuring a comfortable shower experience. It features an inbuilt safety function that shuts down the valve in case of hot or cold water failure, providing peace of mind during use.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 3 Shower Valve

Valve Position: Concealed

Valve Shape: Rectangular

Handle Type: Crosshead/Lever

Shower Valve Height: 280mm

Shower Valve Width: 120mm

Shower Valve Depth: 72-85mm

Inlet Connection Size: 15mm & 22mm

Minimum Pressure: 0.5 Bar

Maximum Pressure: 3.0 Bar

Material: Brass/ABS

Colour: Chrome

Weight: 5.77 Kg

Flow Rate @ 0.5 Bar: 13 l/min

Flow Rate @ 1.0 Bar: 17 l/min

Flow Rate @ 2.0 Bar: 24 l/min

Flow Rate @ 3.0 Bar: 27 l/min

EAN Barcode: 5055146154402

Manufacturer Part Number: A3023

Installation

During installation, extra care must be taken to avoid damaging the fittings. The valve can be fitted either vertically or horizontally, and the cartridge is fully reversible, allowing for easy adjustments if the hot and cold supplies are reversed.

Usage

This shower valve is designed for use with all systems, including gravity fed, pumped, unvented, high pressure, or fully modulated combi-boilers. The top control operates two shower outlets, the center adjusts the temperature, and the bottom control operates the other shower outlet. It provides accurate flow control and maintains thermostatic control within +/- 2 to 3 degrees Celsius, even with fluctuating water pressure.

Other information

The valve is guaranteed for 20 years against faulty workmanship or materials (1 year on serviceable and moving parts). The patented cartridge is highly resistant to calcium build-up, making it suitable for use in hard water areas.

Features

Brand
HUDSON REED
Colour
Grey
Warranty
1.66667 year(s)
Material
Brass
Adapted for PRM
No
