Product information
Description
Dimensions and technical details
- 220-240 V ~ 50 Hz
- Housing colour: grey
- Housing colour: polyproylene
- Nominal size: 250 mm
- Speed levels: 1
- Wattage: 145 W
- Current consumption: 0.63 A
- Revolutions per minute: 2730
- Airflow rate: 1440 m³/h
- Sound pressure level Lp-3m: 43.5 dB(A)
- Total pressure Pmax: 364.8 Pa
- Max. temperature of transported air: +50°C
- Protection class: IPX5
- Insulation class: II
- Weight: 5.3 kg
- Thermal overload protection
- Includes mounting bracket
- Mounting options: any position
- Fan unit can be removed for cleaning and maintenance

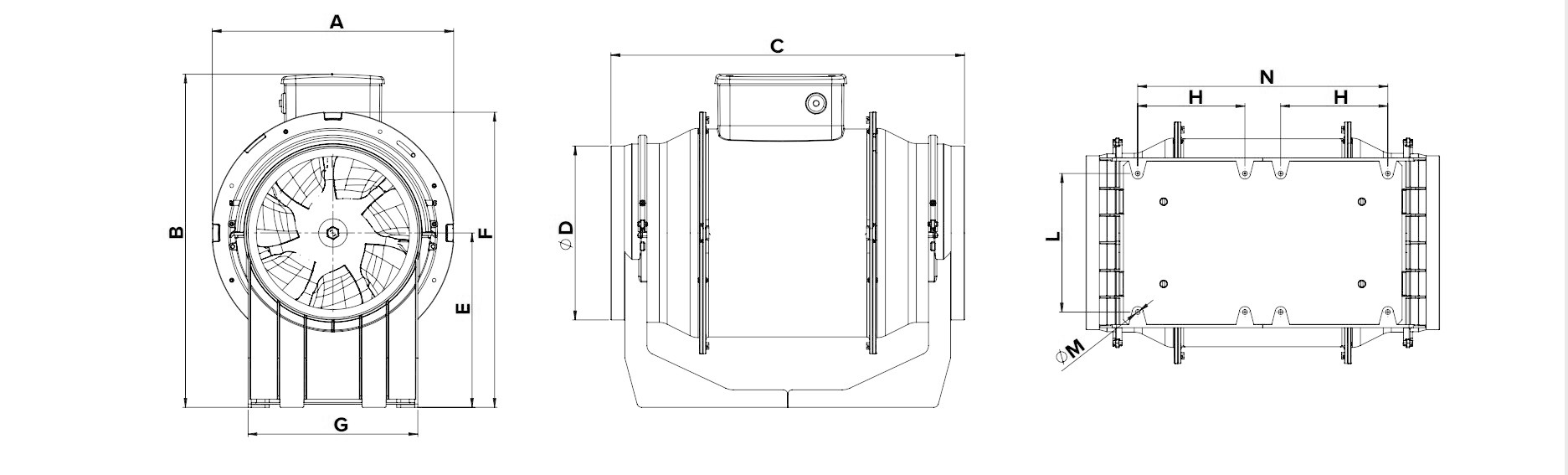

| Dimensions in mm | A | B | C | Ø D | E | F | G | H | L | Ø M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lineo 250 | 300 | 378 | 322 | 243 | 190 | 329 | 200 | 70 | 170 | 5.5 | 174.5 |
Features
- BrandVORTICE
- Width24.3 cm
- Height32.2 cm
- Diameter24 cm
- Weight5.3 kg
