Extractor fan Filo MF 100 T LL

Product information

Description

General description

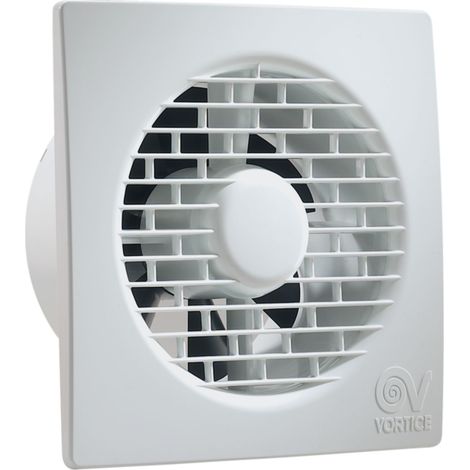

The Filo MF 100 T LL extractor fan is designed for efficient ventilation in various settings. It features a sleek white housing made from UV-resistant ABS, ensuring durability and longevity.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Wattage: 15 W

Current consumption: 0.09 A

Revolutions per minute: 2400

Max. airflow rate: 85 m³/h

Total pressure Pmax: 29 Pa

Sound pressure level Lp-3m: 31 dB(A)

Max. temperature for continuous operation: +50°C

IP rating: IPX4

Insulation class: II

Front cover dimensions: 159 x 159 x 17 mm

Total depth: 77 mm

Diameter duct connector: 98 mm

Weight: 0.51 kg

Other information

Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time

Thermal overload protection

Integral backdraught valve prevents cold air from infiltrating the system

Mounting options: wall, ceiling

Features

Brand
VORTICE
Colour
White
Shape
Cylindrical
Warranty
2 year(s)
IP rating
IPX4

Customer reviews

4,1

/ 73 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 26/04/2024, France

good value for money. a little noisy. quick delivery.

1 person found this helpful

BBernard

Published on 25/08/2025, France

The product corresponds to what I was looking for. However, I don't understand why the casing (width, height) has such a large footprint for a diameter of only 90 mm. Its dimensions are larger than those of other brands for a diameter of 100 mm. I had to cut the casing on 2 sides.

LLaurent

Published on 22/09/2023, France

Installed in a bathroom, it does the job well. It makes noise but I find it normal. Easy to install and efficient

MManoMano Customer

Published on 11/11/2019, France

Perfect extraction but it is noisy

Vvitellaro Carlo

Published on 18/09/2023, France

Received quickly, works very well, and easy to install. Very attractive price

BBRUNO

Published on 12/10/2021, France

the advisor that I had online told me that the product is equipped with a non-return valve, it is a silly sheet of plastic, ashamed, because I paid the price

1 person found this helpful

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.
