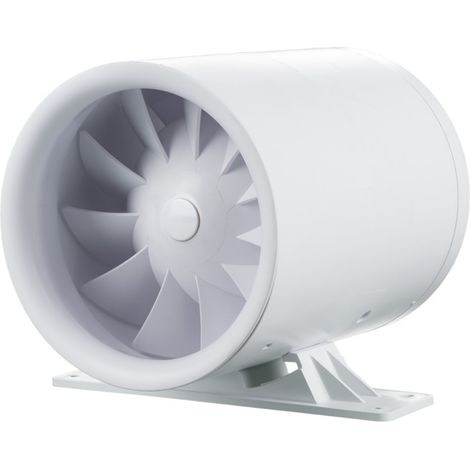

Axial-Flow Inline Fan Quietline-k 125

Product information

Description

General description

The Axial-Flow Inline Fan Quietline-k 125 is designed for efficient air supply or extraction, featuring a robust construction and quiet operation.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: white

Housing material: plastic

Bearing type: ball bearings

Nominal width: 125 mm

Speed levels: 1

Wattage: 13 W

Current consumption: 0.085 A

Revolutions per minute: 2250

Airflow rate: 197 m³/h

Sound pressure level Lp-3m: 32 dB(A)

IP code: IPX4

Weight: 0.75 kg

Diameter: 124 mm

Length: 161.5 mm

Mounting plate dimensions: 124 x 54 mm

Integral protection against thermal overload

Installation

Control not included: on/off via connection to light switch on-site (switch not included in the delivery)

Features

Brand
VENTS
Colour
Multicolour
Shape
Cylindrical
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
197 m³/h
Duct diameter
125 mm
Height
55 cm
Weight
750 g
Power
13 W
Type of lawn aerator
Classic
ManoMano Reference
ME50954486
MMID
767380898503
Product code
1353205705
EAN
4824032189528
