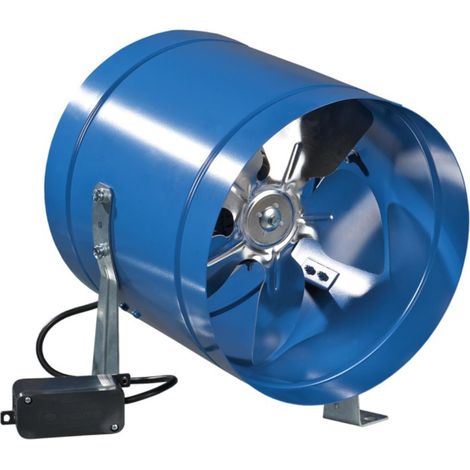

Inline fan VKOM 315 up to 1700 m³/h

Dimensions and technical details

• 230 V ~ 50 Hz
• Housing colour: blue
• Housing material: powder-coated steel
• Nominal size: 315 mm
• Wattage: 110 W
• Current consumption: 0.75 A
• Revolutions per minute: 1300
• Airflow rate: 1700 m3/h
• Sound pressure level Lp-3m: 42 dB(A)
• Max. temperature of transported air: -30 to +40°C
• IP code: IPX4
• Weight: 4.9 kg
• Thermal overload protection
• Includes wall mounting brackets
• Application: air supply or extraction depending on the fan position, ventilation systems with low air resistance and demand for high airflow rate
