General description

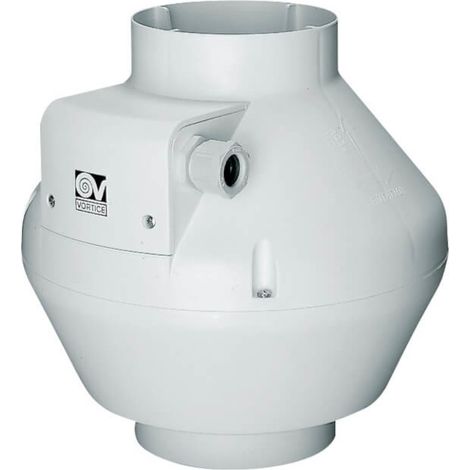

The Inline fan CA 250 V0 E is a powerful centrifugal inline fan designed for efficient air extraction in various settings, including homes, commercial spaces, and industrial buildings. With a maximum airflow rate of 855 m³/h, it ensures effective ventilation while maintaining a subtle operation.Technical specifications
- Voltage: 220-240 Volt ~ 50/60 Hertz
- Max. wattage: 90 W
- Max. current consumption: 0.4 A
- Max. revolutions per minute: 2610
- Max. airflow rate: 855 m³/h
- Total pressure Pmax: 373.3 Pa
- Sound pressure level Lp-3m: 49.9 dB(A)
- Max. temperature: 50°C
- Protection code: IPX4
- Insulation class: II
- Weight: 3.7 kg
- Housing material: self-extinguishing plastic, non-yellowing
- Housing colour: white
- Nominal width: 250 mm
- Thermal overload protection
- Integrated protection grille on the air intake side
Compatibility and accessories
- Optional speed controllers and sensors (sold separately)
- Mounting options: in walls, ceilings, suspended ceilings (steel sheet mounting brackets included)
Installation
- Can be mounted in walls, ceilings, or suspended ceilings
- Steel sheet mounting brackets included in the delivery
Usage
- Ideal for subtle extraction of air in homes, commercial, or industrial buildings
Other information
