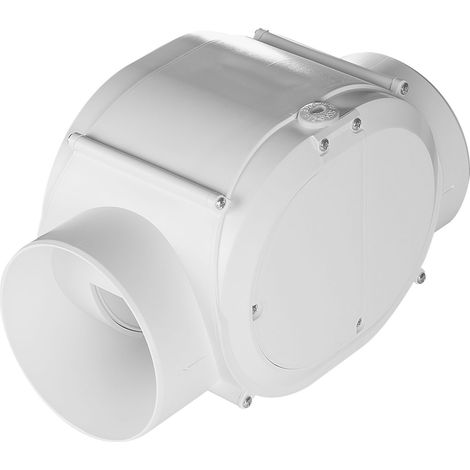

Inline fan VTR 100 D

Product information

Description

General description

The Inline fan VTR 100 D is designed for efficient ventilation in various settings. Its robust polypropylene housing ensures durability, while the ball bearings provide smooth operation. With two speed levels, this fan is capable of adapting to different airflow needs.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: white

Housing material: robust polypropylene

Bearing type: ball bearings

Nominal size: 100 mm

Speed levels: 2

Wattage: 12 / 22.5 W

Max. revolutions per minute: 1500

Airflow rate: 42 / 70 m³/h

Sound pressure level Lp-3m: 28 / 39 dB(A)

Total pressure Pmax.: 127 / 147 Pa

Height: 136 mm

Width: 119.5 mm

Length duct connection: 32 mm

Total length: 230 mm

Max. temperature for continuous operation: +40°C

IP code: IP44

Weight: 1.5 kg

Mounting options: any position

Features

Brand
AWENTA
Colour
White
Width
11.95 cm
Intended use
Indoor
Diameter
10 cm
Height
13.6 cm
IP rating
IP44
Material
Polypropylene
Weight
1.5 kg
Depth
23 cm
Fan type
Ceiling fan
ManoMano Reference
ME51308468
MMID
771894286243
Product code
VTR100D
EAN
5905033313651
