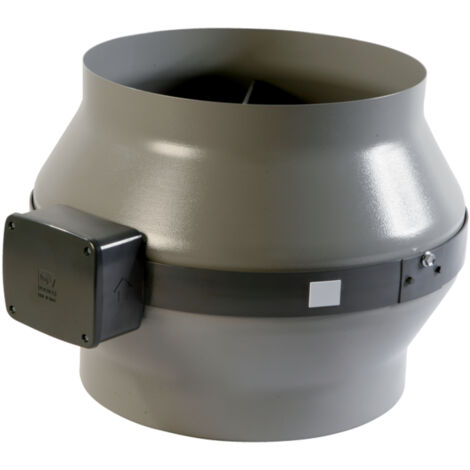

Centrifugal Inline Fan CA MD 100

Product information

Description

General description

The Centrifugal Inline Fan CA MD 100 is designed for efficient ventilation in various applications. It features a robust construction with a hammered grey finish and is suitable for continuous operation at temperatures up to 50°C.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal width: 100 mm

Speeds: 3

Motor wattage: 26 / 47 / 85 W

Current consumption: 0.22 / 0.3 / 0.4 A

Revolutions per minute: 1190 / 1810 / 2370

Airflow rate: 163 / 250 / 337 m3/h

Total pressure Pmax: 195.9 / 323.4 / 381.6 Pa

Max. sound pressure level Lp-3m: 43.2 dB(A)

Protection code: IP44

Insulation class: II

Diameter duct connection: 97 mm

Diameter without terminal box: 255 mm

Diameter with terminal box: 330 mm

Total depth: 239 mm

Weight: 2.97 kg

Motor type: Ball-bearing external rotor motor

Other information

Thermal overload protection included

Features

Brand
VORTICE
Colour
Grey
Shape
Cylindrical
IP rating
IP44
Material
Steel
Integrated non-return valve
No
Duct diameter
100 mm
Weight
3760 g
Noise level
43.2 dB
Pcs per pack
1
Ball bearings
Yes
Type of lawn aerator
Classic
ManoMano Reference
ME2035501
MMID
427060673398
Product code
vor0000016150
EAN
8010300161501
