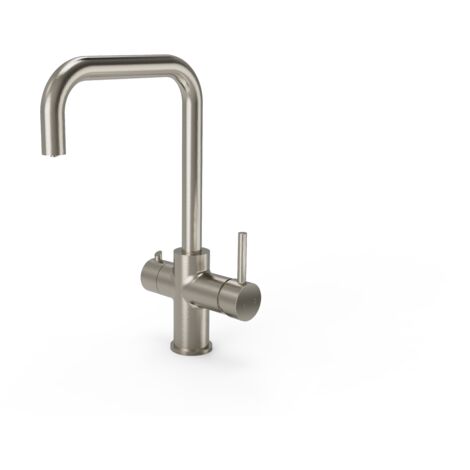

Instant Hot Boiling Water Tap 3 in 1 Kitchen Mixer Brushed Steel Finish Ellsi

Name: Instant Hot Boiling Water Tap 3 in 1 Kitchen Mixer Brushed Steel Finish Ellsi
Brand: ELLSI
SKU: 198641
Price: 299.99 GBP
Availability: InStock

Sold by Compare The Bathroom Ltd

Product information

Description

General description

Instant Hot Boiling Water Tap 3 in 1 Kitchen Mixer in a brushed steel finish is designed to provide instant boiling hot water. This contemporary kitchen tap features a high-quality brass internal construction and is deck mounted with a single tap hole. It includes a standard hot and cold water handle on the right side and a hot/boiling water dispenser handle on the left side, along with a swivel spout for added convenience.

Technical specifications

Height: 358mm

Width: 165mm

Spout projection: 201mm

Spout height: 260mm

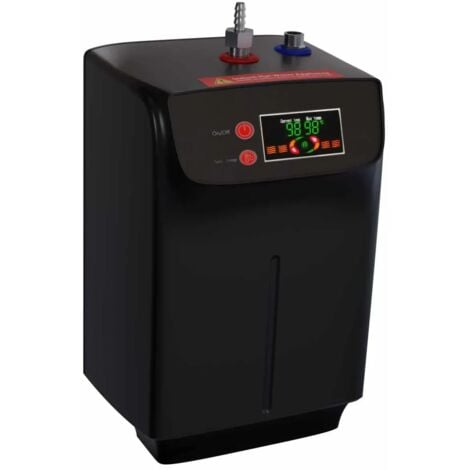

Tank capacity: 2.4 litres

Rated input: 1.5kW

Rated voltage: 220 - 240V AC, 50Hz

Standby power: 2.2W

IPX classification: IPX4

Static bar pressure: 1 bar

Dynamic bar pressure: 1.5 to 5 bar

Optimum working pressure: 1 bar min. to 3 bar max.

Temperature control: 75 - 98 degrees C

Plug type: fused 13A 3 pin plug

Power cord length: 910mm

Replacement cycle for carbon water filter: 3 / 6 months

Compatibility and accessories

Includes tap tails

Connection 1: 3/8" BSP female to 1/2" BSP male adaptor

Connection 2: 3/8" BSP female to quick connection adaptor

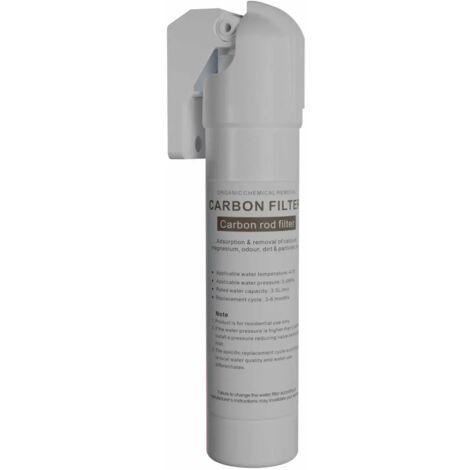

Includes carbon water filter

Includes fittings

Installation

Installation type: stand alone

Suitable for all plumbing systems, preferably balanced

Requires minimum operating pressure of 1 bar to maximum of 3 bar

Usage

Designed for instant boiling water delivery

Touch screen digital interactive control for easy operation

Other information

Construction material: ABS / glass

Matt black finish available

Sizes approx for carbon water filter: Height: 310mm, Width: 70mm, Depth: 88mm

PE tube length: 1000mm

Manufacturers 2 year guarantee

EMC compliance: EN 55015: 2013+A1: 2015; EN 61547: 2009; EN 61000-3-2: 2014; EN 61000-3-3: 2013

LVD compliance: EN 60335-2-35: 2002 + A1: 2006 + A2: 2011; EN 60335-1: 2012 + A11: 2014; EN 62233: 2008

Features

Brand
ELLSI
Material
Brass
Adapted for PRM
No
With waste included
No
With anti-limescale function
No
Beak feature
Swivel
Intended use of the tap
Sink
Hand shower included
No
Pull-out spray
No
Water saving
No
Pipe thread size
1/2" (15x21)
Output thread
1/2" (15x21)
Shape
Cylindrical
Beak shape
Swivel
Height
35.8 cm
Spout height
26 cm
Flow limiter
No
Temperature limiter
No
Handle material
Steel
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Max pressure
3 bar
Concealed tap
No
Wall-mounted tap
Yes
38°C Safety
No
Tap head only
Yes
Cool body thermostatic
No
Tap type
Single-lever mixer
ManoMano Reference
ME92810215
MMID
303270365268
Product code
198641
EAN
5056634502651
