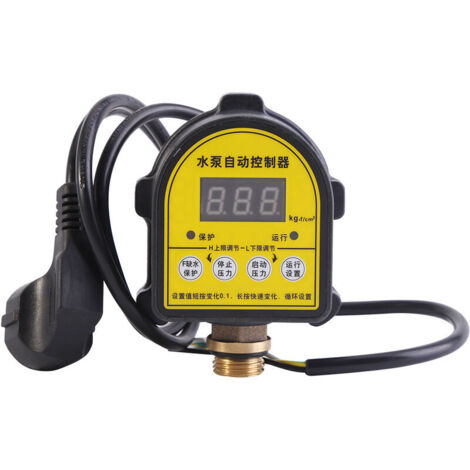

Intelligent Automatic Digital Home Water Pump Pressure Controller ON/OFF Switch 220V
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
1. Automatically stops the pump when there is insufficient water and automatically restarts when water is supplied.
2. Microcomputer Processing Unit (MCU) chip, safe and intelligent control. Built-in pressure sensor, stable and accurate.
3. Automatic water shortage protection function to prevent the water pump from running dry.
4. Button operation, on-screen display of adjusted pressure, convenient and quick.
5. Shock resistant, strong anti-interference, fast response, stable performance, and long service life.
Built-in pressure sensor, stable and accurate. Microcomputer Processing Unit (MCU) chip, it can achieve safe and intelligent control. Automatically stops the pump when there is insufficient water and automatically restarts when water is supplied. Button operation, on-screen display of the adjusted pressure, convenient and quick. Worth buying.
Features:
Automatically stops the pump when there is insufficient water and automatically restarts when water is supplied.
Microcomputer Processing Chip (MCU), safe and intelligent control. Built-in pressure sensor, stable and accurate.
Automatic low-water protection function to prevent the water pump from running dry.
Button operation, on-screen display of adjusted pressure, convenient and quick.
Shock resistant, strong anti-interference, fast response, stable performance, and long service life.
Specification:
Condition: 100% Brand New
Working Pressure Range: 0-10 bar
Relay Capacity: 220VAC 10A
Output Signal: Active output, to supply 220V to the pump, starts the pump below 1.5KW directly
Fluid Temperature: 80 degrees Celsius
Installation Interface: G1/2
Waterproof: IP65
Long Service Life: Can be used continuously for more than 20 million times
Plug Type: International Three-Pin Plug plates
Wiring: (3 wires)
White: Positive
Black: Negative
Green, Yellow: Ground
Cable Length: approx. 90 cm / 35.4 inches
Product Size: approx. 85 x 112 mm / 3.3 * 4.4 inches
Package Weight: approx. 421g
Package Weight:
1 x Pressure Switch
Installation Instructions:
1. If the pump does not have a check valve, then a check valve must be installed upstream of the pressure switch; otherwise, the pump may cycle on/off more frequently.
2. When you turn on the tap water, if the pump's on/off time is incorrect, please adjust the H valve to a larger setting.
3. If the pump stops working, please lower valve H. Conversely, if the pump does not work, please raise valve L.
Note:
1. Please carefully check the size measurement chart before making payment.
2. Please allow a 0.5-1 inch difference due to manual measurement. (1 inch = 2.54 cm)
3. The color of the actual items may slightly differ from the listing images due to different computer monitors; thank you for your understanding.
2. Microcomputer Processing Unit (MCU) chip, safe and intelligent control. Built-in pressure sensor, stable and accurate.
3. Automatic water shortage protection function to prevent the water pump from running dry.
4. Button operation, on-screen display of adjusted pressure, convenient and quick.
5. Shock resistant, strong anti-interference, fast response, stable performance, and long service life.
Specification:
Description:Built-in pressure sensor, stable and accurate. Microcomputer Processing Unit (MCU) chip, it can achieve safe and intelligent control. Automatically stops the pump when there is insufficient water and automatically restarts when water is supplied. Button operation, on-screen display of the adjusted pressure, convenient and quick. Worth buying.
Features:
Automatically stops the pump when there is insufficient water and automatically restarts when water is supplied.
Microcomputer Processing Chip (MCU), safe and intelligent control. Built-in pressure sensor, stable and accurate.
Automatic low-water protection function to prevent the water pump from running dry.
Button operation, on-screen display of adjusted pressure, convenient and quick.
Shock resistant, strong anti-interference, fast response, stable performance, and long service life.
Specification:
Condition: 100% Brand New
Working Pressure Range: 0-10 bar
Relay Capacity: 220VAC 10A
Output Signal: Active output, to supply 220V to the pump, starts the pump below 1.5KW directly
Fluid Temperature: 80 degrees Celsius
Installation Interface: G1/2
Waterproof: IP65
Long Service Life: Can be used continuously for more than 20 million times
Plug Type: International Three-Pin Plug plates
Wiring: (3 wires)
White: Positive
Black: Negative
Green, Yellow: Ground
Cable Length: approx. 90 cm / 35.4 inches
Product Size: approx. 85 x 112 mm / 3.3 * 4.4 inches
Package Weight: approx. 421g
Package Weight:
1 x Pressure Switch
Installation Instructions:
1. If the pump does not have a check valve, then a check valve must be installed upstream of the pressure switch; otherwise, the pump may cycle on/off more frequently.
2. When you turn on the tap water, if the pump's on/off time is incorrect, please adjust the H valve to a larger setting.
3. If the pump stops working, please lower valve H. Conversely, if the pump does not work, please raise valve L.
Note:
1. Please carefully check the size measurement chart before making payment.
2. Please allow a 0.5-1 inch difference due to manual measurement. (1 inch = 2.54 cm)
3. The color of the actual items may slightly differ from the listing images due to different computer monitors; thank you for your understanding.
