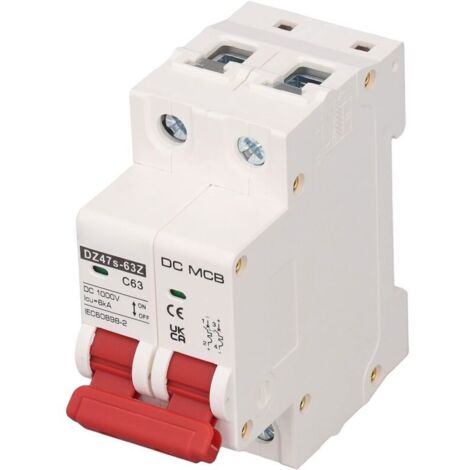

IP65 Waterproof Solar Circuit Breaker, Miniature DC Circuit Breaker, 2P 1000V 63A 6KA, DC Solar Circuit Breaker, DIN Rail Mounting, DC Disconnect Switch for Solar PV Systems
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description
The IP65 waterproof solar circuit breaker is a protective device designed for photovoltaic solar systems and other DC applications. It provides rapid disconnection in the event of a short circuit, thus ensuring circuit safety. This circuit breaker is suitable for use in various power systems, including marine power systems.Technical Specifications
- Item Type: DC Circuit Breaker
- Material: PA66
- Model: DZ47s 63Z
- Rated Current: 63A
- Rated Voltage: 1000V DC
- Rated Pole Current: 6000A
Installation
- 35mm DIN rail mounting
- Modular design with screw clamp for quick and easy installation
Application
- Protects electrical equipment against overloads and short circuits
- Can also be used to control and isolate the circuit
- Use after wiring is installed in the junction box distribution
Other information
- Package list: 1 x DC circuit breaker, 1 x guide rail, 2 x screws
Features
- BrandTEHTUY
- Amperage63 A
- Pcs per pack1
- Tripping curveC
- Circuit breaker functionTwo pole
- Height10 mm
- IP ratingIP65
- Width10 mm
- Type of electrical installationDIN rail
- Number of modules1
- Number of terminals2
- Breaking capacity6 kA
- Voltage1 V
- ManoMano ReferenceME98841782
- MMID299939381801
- Product codemano-HWLX-04827
- EAN6282768326910
