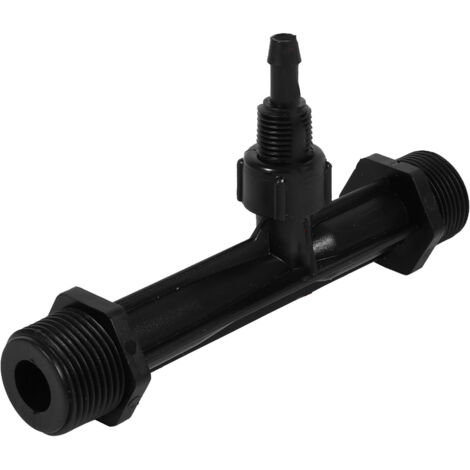

Irrigation Tube Fertilizer Mixer Injector Garden Water Device Plastic Black G3/4 Inch

1、Made of quality engineering POM plastic, good workmanship, sturdy and durable

2、With outstanding chemical resistance to most chemical. Efficient and compact differential pressure injector device

3、Economic and lower cost choice for you

4、Suitable for 1/2 inch, 3/4 inch or 1 inch BSP inlet/outlet connector

5、Applicable for agriculture irrigation system fertilizer and chemical injection

Description:

When the fluid flows through the venturi tube, that will bring vacuum. The fluid caused the vacuum is recognized as moving fluid. For the irrigation injector, the moving fluid is the irrigation water. The vacuum produced by venturi tube imbibe fertilizer and chemical into moving water. Venturi tube is drived by water, namely they drive by the main irrigation tube pressure. Operating energy of these device can reduce the irrigation water load of water pipeline.

Features:

Made of quality engineering POM plastic, good workmanship, sturdy and durable.

With outstanding chemical resistance to most chemical. Efficient and compact differential pressure injector device.

Economic and lower cost choice for you.

Suitable for 1/2", 3/4" or 1" BSP inlet/outlet connector.

Applicable for agriculture irrigation system fertilizer and chemical injection.

Specifications:

Condition: 100% Brand New

Material: POM Plastic

Inlet/Outlet Thread Size: 1/2 inch, 3/4inch, 1inch (Optional)

Color: as picture

Rate of Flow Range:

1/2 inch: 0.29~0.81 M

3

/H, 0.7~0.95bar

3/4 inch: 0.65-2.42 M

3

/H, 0.7-9.5bar;

1 inch: 1.82~6.34 M

3

/H, 0.7-9.5bar

Suction Capacity:

1/2 inch: 3~37 L/H

3/4 inch: 9~92 L/H

1 inch: 34~279 L/H

Dimension:

G1/2inch Size: Approx. 14.2 x 7.4 x 2.03cm / 5.6 x 2.9 x 0.8inch

G3/4inch Size: Approx. 14.2 x 7.3 x 2.57cm / 5.6 x 2.9 x 1.0inch

1inch Size: Approx. 19.5 x 9.3 x 3.25cm / 7.7 x 3.7 x 1.3inch

Package Weight: 28~92g

Package Included:

1 x Irrigation Fertilizer Injector
