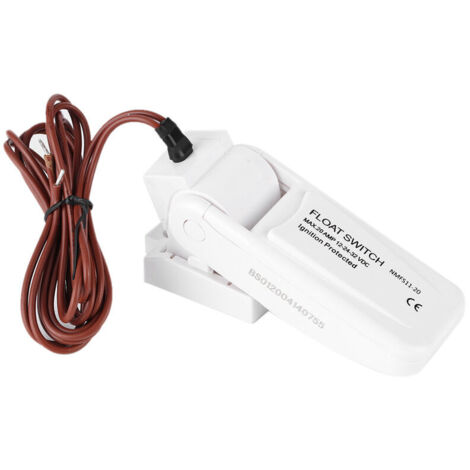

Jeffergarden Automatic Protected Boat Bilge Pump Float Switch Ignition for Electric Water Pumps
Of which environmental contribution £0.01 including VAT.
Sold by LinzGain Sarl
You may also like
Compare with similar items
Product information
Description
1. When the water level reaches 2 inches, the float switch opens automatically. When the water level drops to 3/4 inch, the float switch disconnects automatically. 2. The heavy-duty flow switch is designed for the most demanding applications. 3. Use with pumps drawing up to 20 amps. Use with the fuse size recommended for the pump to which it is connected. 4. The operation is more stable and can connect various yachts and boats. 5. The switch uses a mercury-free rolling ball mechanism to prevent some switches from rapidly turning on/off.
Specification:
Condition: 100% Brand New Item Type: Float Switch. Material: ABS Color: as shown in the pictures Model: FS-20-01 20AMP 12-24-34VDC Maximum Amps 12V: 20A Maximum Amps 24V: 10A Maximum Amps 32V: 8A Wire Length: approx. 1m/3.3ft Wire Gauge: 18 Product Size: approx. 5x1.9x2 inches Protected Ignition Mercury Free
Package List:
1x Float Switch 1x User ManualNote: 1. Keep all wire connections above the highest water level. Wires must be sealed with a waterproof marine sealant to prevent wire corrosion. 2. Do not use with 110V applications. 3. Designed for fresh or salt water only.
Features
- BrandSNQ
- Weight100 g
- MaterialAcrylonitrile butadiene styrene (ABS)
- ColourBlack
- Float typeCable float
