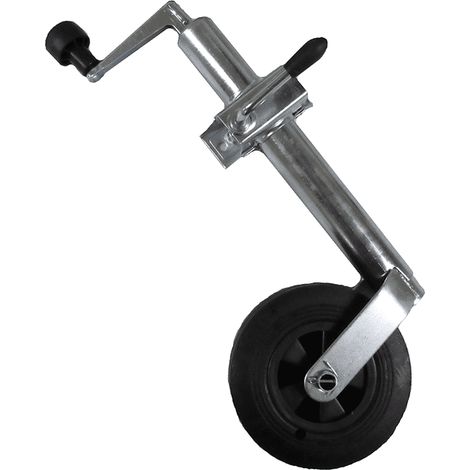

Jockey Wheel with Clamp 48MM (Plastic Rim Trailer Guide Caravan Rubber Heavy Duty)

Name: Jockey Wheel with Clamp 48MM (Plastic Rim Trailer Guide Caravan Rubber Heavy Duty)
Brand: SECUREFIX DIRECT
SKU: SFJOCKD3/JOCKN
Price: 37.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Jockey wheels are essential for making the movement and adjustment of trailers easier. This 48MM Heavy Duty Jockey Wheel features a durable plastic rim and a robust clamp, designed to securely hold jockey wheels and prop stands on the side of trailers.

Technical specifications

Tube Diameter: 48MM

Tyre Width: 40MM

Tyre Diameter: 200MM

Height Range: 590MM - 820MM

Bore Length: 58MM

Clamp Length: 130MM

Clamp Width: 55MM

Distance Between Hole Centres: 104MM

Hole Diameter: 10.5MM

Finish: Zinc Plated

Usage

The jockey wheel is operated by turning the handle, which features rubber grips for easier use.

Simply screw the handle clockwise or anti-clockwise to open or close the clamp.

Other information

Bright zinc plating aids in rust resistance, although the finish may have blemishes due to the zinc plating process.

Features

Brand
SECUREFIX DIRECT
Material
Two-material
Pcs per pack
1
Wheel diameter
200 mm
Center-to-center distance
104 mm
Weight
100 g
Wheel with rim
Yes
ManoMano Reference
ME27138713
MMID
266120548203
Product code
SFJOCKD3/JOCKN
EAN
600988510463

Advice from

Jockey wheel buying guide

Jockey wheels are used as props to couple and steer trailers with ease, and are generally welded or bolted directly onto the A frame. Choose between puncture-proof, pneumatic or motorised jockey wheels but be sure to pay attention to the load capacity and clamp size. Read on to find the right jockey wheel.
