John Guest Speedfit Straight Connector 22mm

Name: John Guest Speedfit Straight Connector 22mm
Brand: JOHN GUEST SPEEDFIT
SKU: 5055003858436
Price: 11.12 GBP
Availability: InStock

Sold by Trade Hut Direct

Product information

Description

General description

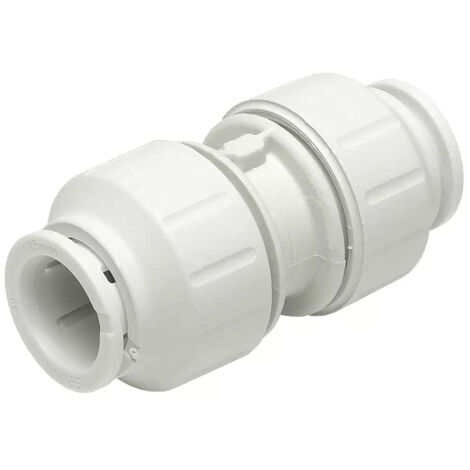

Choose this equal straight coupler to securely connect two pipes of the same size. Part of the JG Speedfit plastic push-fit system, the 22mm connector is easy to use – simply push it fully onto the pipe, then twist the plastic nut clockwise to lock it in place. Up to 40% faster to install than traditional methods, this connector is also easier to use in tight spaces because there’s no need for hot works and tools. Demounting the connection is simple too – just unlock the nut by hand, push the collet towards the body of the push-fit fitting, and pull the pipe to release. JG Speedfit products blend push-fit and multi-seal technology for a reliable leak-proof connection.

Technical specifications

Brand: JG Speedfit

Colour: White

Material: Plastic

Manufacturer ID: PEM0422W

Warranty: 50 years

Diameter: 22 mm

Pack Size: 1

Fitting Type: Coupler

Equal or Reducing: Equal

Minimum operating temperature: 20 °C

Maximum operating temperature: 105 °C

Maximum operating pressure at minimum temperature: 12 bar

Maximum operating pressure at maximum temperature: 3 bar

Compliance: BS EN 7291 Parts 1, 2, 3 and S

Approval: WRAS-approved

Compatibility and accessories

Suitable for hot and cold water services, central heating systems, and combi systems

Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe

Features

Brand
JOHN GUEST SPEEDFIT
Length
2.2 cm
Width
22 mm
Material
Plastic
Colour
White

Advice from

How to choose your plumbing fittings?

Welded and olive fittings for copper pipe installations, compression screw fittings for polyethylene, push and sliding fittings for PEX pipes and adhesive fittings for PVC: read our advice to become a home plumbing pro!

Read our guide
