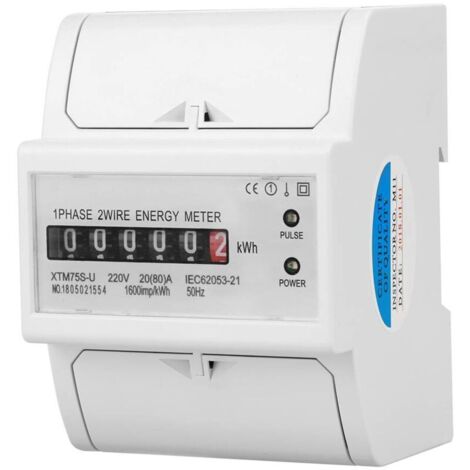

kWh meter, 2-wire electronic electricity meter, single-phase electricity meter, DIN rail electricity meter, for household use (20(80) A)
Of which environmental contribution £0.01 including VAT.
Sold by LinzGain Sarl and 1 other seller
You may also like
Compare with similar items
Product information
Description
Features: Standard mounting on 35 mm DIN rail, according to DIN EN 50022. Six-pole width (12.5 mm module), according to JB/T7121-1993. Selectable 5+1 digit LCD display (99999.1 kWh). Standard configuration: one passive pulse output (polarized), optionally with an additional passive pulse output (polarity-independent), according to IEC 62053-31. The standard configuration does not detect the direction of the charging current. Automatic detection of the direction of the charging current is optional, including signaling via a separate LED. Active power consumption is measured in a single-phase, two-wire system, regardless of direction. Complies with IEC 62053-21. Standard with short terminal cover; an extended terminal cover for increased protection and safe operation is available as an option.
Technical data: Model: XTM75S-U
Accuracy: Class 1
Voltage: 220V Current: 5 (30) A, 15 (60) A, 20 (80) A (optional) Insulation performance: AC voltage 4 kV for 1 minute, 1.2/50 µs waveform pulse voltage 6 kV Dimensions: 10 x 7.6 cm / 3.94 x 2.99 inches
Weight: about 270-277 g
Package contents: 1 x DIN rail electricity meter, 1 x instruction manual
counterdefalcateurelectricelectricalmeterunitkwhedfmonofase box for single-phaseconsumptionlegrandnikousouselectricpassagemobilesitepanel1phaseenergyraildin2-wire4pmodularbox
Technical data: Model: XTM75S-U
Accuracy: Class 1
Voltage: 220V Current: 5 (30) A, 15 (60) A, 20 (80) A (optional) Insulation performance: AC voltage 4 kV for 1 minute, 1.2/50 µs waveform pulse voltage 6 kV Dimensions: 10 x 7.6 cm / 3.94 x 2.99 inches
Weight: about 270-277 g
Package contents: 1 x DIN rail electricity meter, 1 x instruction manual
counterdefalcateurelectricelectricalmeterunitkwhedfmonofase box for single-phaseconsumptionlegrandnikousouselectricpassagemobilesitepanel1phaseenergyraildin2-wire4pmodularbox
Features
- BrandSNQ
- Amperage80 A
- Photovoltaic / renewable production compatibilityNo
- Control functionNo
- Height10 cm
Customer reviews
4,0
/ 1 Reviews
