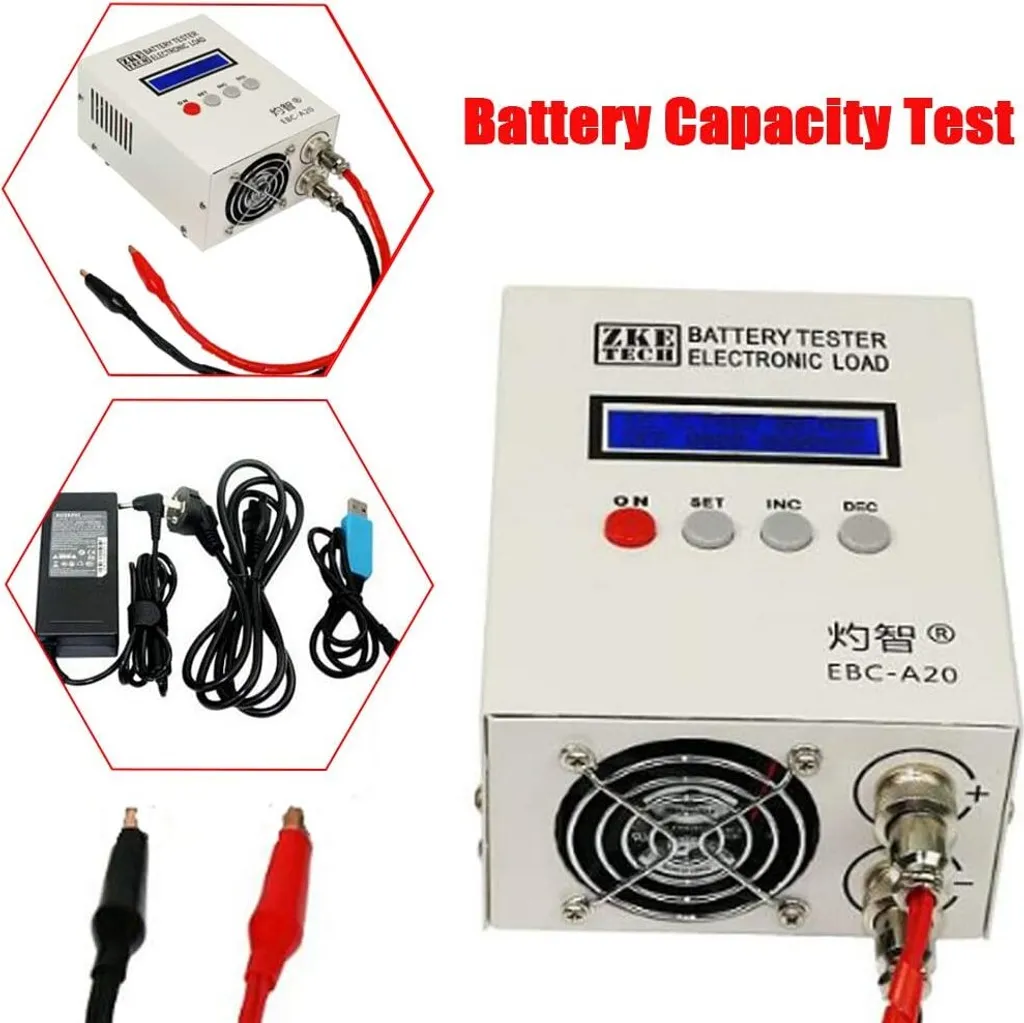

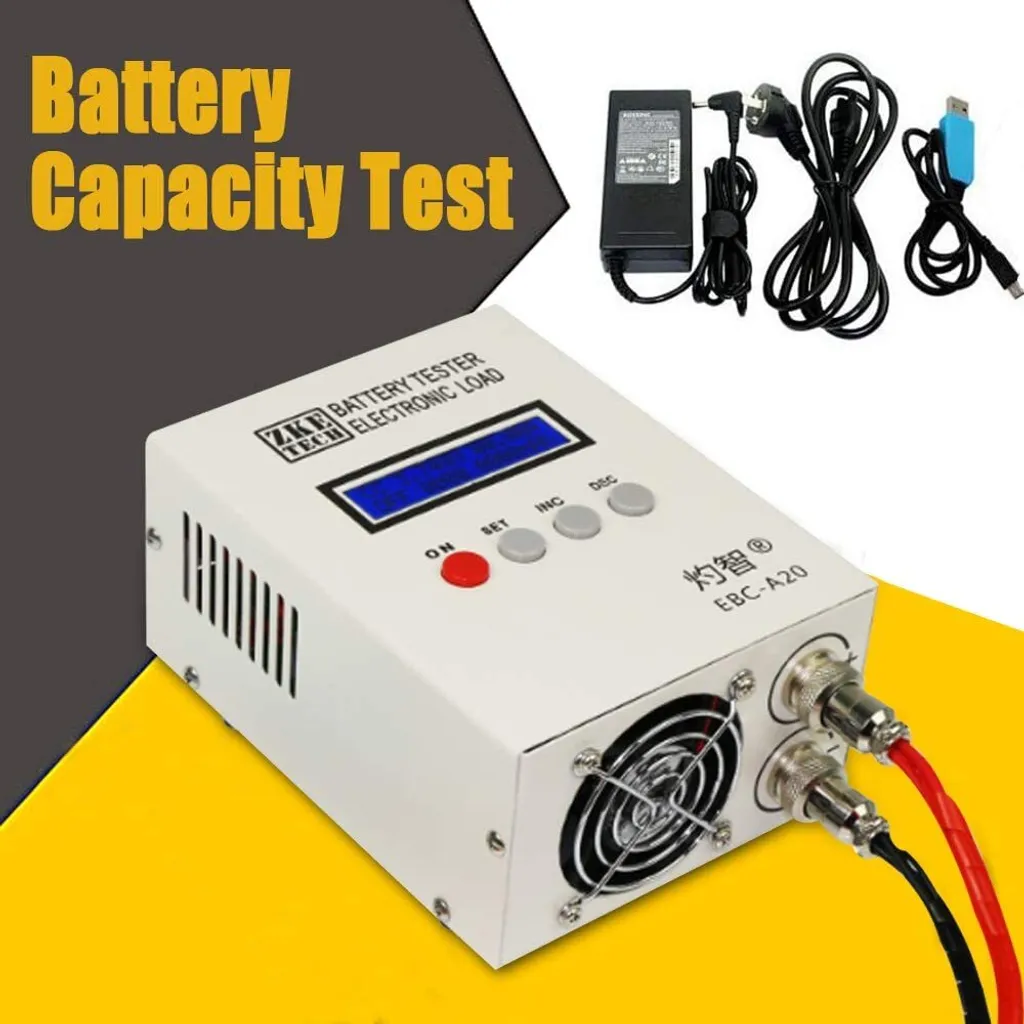

Li-Po Battery Capacity Tester EBC-A20 Battery Tester 5A Charging 20A Discharging 85W Multifunction Battery Capacity Tester

~~£172.84~~

Of which environmental contribution £0.01 including VAT.

Sold by Permu UK

Product information

Description

General description

EBC-A20 is a multifunctional battery capacity tester designed for testing the performance of lithium and lead-acid batteries. It features both charging and discharging functions, allowing users to assess battery capacity effectively. The device supports separate loading and unloading, and can connect to a computer for advanced functions through online software.

Technical specifications

Charging and discharging current: 20A

Maximum power: 85W

Power supply: DC 19V-20V, current over 3.5A

Voltage adjustment: 0.00-30V, minimum step 0.01V (maximum 18V when charging)

Discharge current: 0.1-20A, minimum 0.01A (automatic current limitation when overcurrent consumption)

Test voltage range: 0.0-4.5V (low voltage), accuracy up to 0.003V; 4.5V - 30V (high voltage), accuracy up to 0.01V

Test current: 0.1-20A, accuracy up to 0.01A

Capacity test accuracy: 10AH / 0.001AH, 10A-100A / 0.01A, over 100A / 0.1A

Cable connection: 4-wire test for voltage and current to ensure accuracy

Compatibility and accessories

Compatible with lithium and lead-acid batteries

Package includes:

1x power cable

1x charger

1x inline cable

2x cable lamp

Usage

DSC-CC (Constant Flow Charge): Constant discharge flow for testing battery capacity

DSC-CP (Consumption Constant Electricity Charge): Constant discharge current for simulating power consumption devices

CHG-CV (Constant Current Charging): Supports battery capacity test for lithium batteries

Automatic charging and discharging: Supports charging and discharging models and testing battery capacity

Other information

This model does not support NIMH, NICD load and performance testing

Features

Brand
OSUPER
Voltage
4.2 V
Material
Metal
Warranty
1 year(s)
Display mode
Digital
