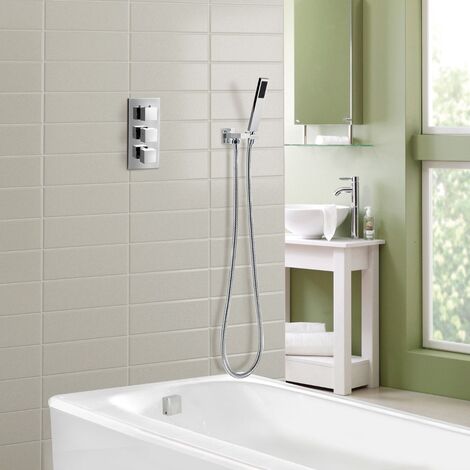

Lilly 3 Dial 2 Way Square Concealed Thermostatic Mixer Valve, Slim Square Handset & Bath Filler Chrome

Product information

Description

General description

This Modern Design Concealed Thermostatic Valve will complement any modern bathroom suite, offering thermostatic showering via three easy-to-operate controls for temperature and flow. It is supplied with a fixed shower head with a swivel joint and arm, along with 6 body jets.

Technical specifications

High-Quality Design: Chrome Plated

Manufactured from highly durable brass

Operating range: 20 - 50 °C

Safety button: 38 °C

Chosen temperature maintained to within +/-1ºC

Pre-set maximum temperature

Automatic shut off in the event of water cold supply failure

Compatibility and accessories

Suitable for the following water systems:

Combination boiler systems

Gravity-fed systems (only with a pump)

MegaFlo systems

Pumped hot water systems

Unvented hot water systems

Standard pressurized hot water cylinder type systems

Package Contents:

1 x Thermostatic Concealed Valve

1 x Bath Filler with waste

1 x Handset, Hose and Handset Holder

Complete fitting accessories

Installation

UK standard size fitting

Usage

Top dial: Controls water to the outlet (Shower Head)

Middle dial: Temperature control

Bottom dial: Controls water to the outlet (handset)

Other information

This product comes with a 10-year guarantee

Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism

Features

Brand
NES HOME
Colour
Grey
Material
Brass
With waste included
Yes
Intended use of the tap
Shower
Hand shower included
Yes
Shape
Square
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Pcs per pack
1
Concealed tap
Yes
Wall-mounted tap
Yes
38°C Safety
Yes
Tap head only
Yes
Type of installation method
For mounting
Tap type
Dual-lever mixer
Installation type
With stand
ManoMano Reference
ME44636148
MMID
306539659296
Product code
SV72+B176+C107+H167+HP02A
EAN
1778869498137
