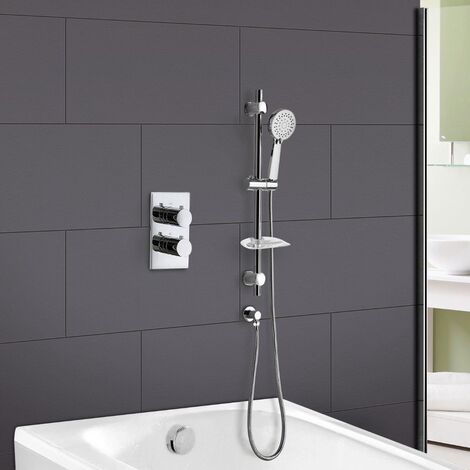

Lily 2 Dial 2 Way Round Concealed Thermostatic Mixer Valve, Slider Rail, Handset & Bath Filler Chrome

Concealed Thermostatic Shower Mixer Information:

Constructed from solid brass, with modern ceramic disc technology, our stylish concealed thermostatic shower mixer valve is perfect for creating a new minimalistic look to your bathroom. The Thermostatic mixer valve mounts onto the wall making your shower look less cluttered and bulky and the slim rectangular backplate neatly conceals all pipework, adding an exceptional sleek finish.

Featuring round dials with short levers for fingertip control, the mixer valve supplies water to 2 outlet diverters. The thermostatic showering can be accessed via the 2 dials 2-way easy-to-operate dial controls - separate controls for temperature and flow; giving you full temperature control.

Please Note: This product comes with a 10-year guarantee.

Thermostatic Concealed Valve Features

• Top dial - controls water to 2 outlet diverter
• Bottom dial - temperature control
• High-Quality Design
• Chrome Plated
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 - 50 deg C with 38 deg C safety button
• Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• Minimum pressure: 1 bar
• Maximum pressure: 6 bar
• UK standard size fitting

Bath filler and waste Specifications

• Push-button bathtub waste with connecting overflow
• Combined bath filler and waste
• The overflow doubles as a bath filler tap and is connected to the waste by strong and sturdy plastic piping
• Modern design chrome-plated finish
• Durable and solid brass construction

Slider Rail Specifications

• Adjustable height (from 300mm - 640mm)
• Fully adjustable lower or upper wall mounting, making it ideal for new or replacement installations
• Slider rail - stainless steel metal
• Button on handset bracket to slide the holder and adjust the angle
• Handset - 3 mode: bubbling spray, massage spray and saturating spray
• Chrome-plated ABS plastic handset, with rubber easy-clean nozzles
• Stainless steel, braided, flexible 1.5m double interlocking shower hose
• Soapdish attached to slider rail
• Finished in chrome ensuring a high-quality reflective mirror finish
• Subject to a minimum pressure of 0.5 bar to maximum 3 bar
• UK standard size fitting
• Optional round wall bracket

Technical Information

Suitable for the following water systems:

• Combination boiler systems
• Gravity-fed systems (only with a pump)
• MegaFlo systems
• Pumped hot water systems
• Unvented hot water systems
• Standard pressurised hot water cylinder type systems

Package Contents

• 1 X Thermostatic Concealed Valve
• 1 X Bath Filler with waste
• 1 X Handset, Hose and Handset Holder
• 1 X Wall-mounted Shower Handset Rail
