VEVOR Linear Rail 2PCS 500mm SBR16 Linear Slide Rail 4PCS SBR16UU Bearing Block CNC Kit Linear Rails and Bearings Kit CNC Rails Linear Rail Set for CNC Machines Automated Machines and Equipments

Name: VEVOR Linear Rail 2PCS 500mm SBR16 Linear Slide Rail 4PCS SBR16UU Bearing Block CNC Kit Linear Rails and Bearings Kit CNC Rails Linear Rail Set for CNC Machines Automated Machines and Equipments
Brand: VEVOR
SKU: ZXDGSBR16-500MM01V0
Availability: OutOfStock
Rating: 4.17 (52 reviews)

Product out of stock

Product information

Description

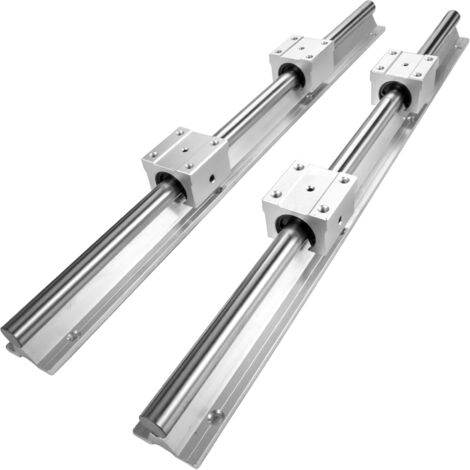

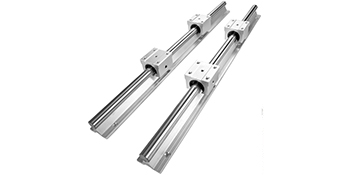

Linear Rail Set SBR16-500mm

This linear rail kit is of 2 pieces of 500mm/19.7" long SBR16 rail shafts and 4 SBR16UU bearing blocks. Perfect combination of main axle and aluminum alloy support, which nicely stabilizes the original rail. Premier quality bearing blocks moves smoothly while using.

500mm SBR16 Linear Rail Kits
High-quality Steel Material
Premier Linear Guiding System
Easy To Assemble

Key Features

【500MM SBR16 LINEAR RAIL KITS】- This linear rail set includes 2 pieces of 500mm/19.7" long SBR16 rail shafts and 4 SBR16UU blocks. Sliding blocks to be used cooperatively with rails, smooth sliding provided by inside linear bearing.
【HIGH-QUALITY STEEL MATERIAL】- CNC parts linear rails are made of carbon steel, linear Bearings made of GCr15 bearing steel with aluminum alloy housing. Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, more durable.
【PREMIER LINEAR GUIDING SYSTEM】- Perfect combination of main axle bearing rail and aluminum alloy support, which nicely stabilizes the original rail. Industrial-grade standard SBR block, with high precision linear bearing inside.
【EASY TO INSTALL】- Aluminum alloy support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need to maintenance.
【WIDE APPLICATION】- The linear guide rail is widely used in the automation machinery such as DIY CNC routers,lathes, machine tool, bending machines, laser welding machines, etc. Also applicable for large-scale transmission equipment including industrial robots, cracker machines.


SBR16 Linear Rail Kits Linear rail kit includes 2 pieces of 500mm/19.7" long SBR16 rail shafts and 4 SBR16UU blocks. Corrosion-resistant, high strength, and wear resistance.	High-quality Material This bearing rail is constructed with carbon steel main axle and aluminum alloy support, GCr15 bearing steel linear rail block and aluminum alloy casing.	High Hardness & Rigidity Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, with high accuracy and strong durability.

Complete Sliding Unit Cylindrical guide composed by principal rail and aluminum support, stabilizing the original rail. Premier quality bearing blocks moves smoothly while using.	Easy To Assemble Aluminum material support rail with pre-drilled holes for ease of mounting.	Widely Used The linear guides is perfect for your DIY routers, mills, lathes, widely used in the automation machinery such as machine tool, bending machines, laser welding machines, etc.

Specification

Type: Linear slide rail set
Performance: Smooth motion
Performance: Low noise
Rail Shafts: 2 pieces SBR16
Bearing Blocks: 4 pieces SBR16UU

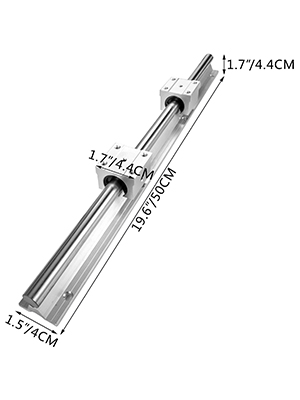

Rail shaft length: 500mm/19.7inch
Rail shaft diameter: 16mm/0.63inch

Package Content

2 x SBR16-500 mm/19.7" Linear Slide Guide Fully-supported Rails
4 x SBR16UU Bearing Blocks

Features

Brand
VEVOR
Warranty
1 year(s)
Origin
Made in China
Outer diameter
16 mm
Height
44 mm
Width
40 mm
Compatible brand
Universal
Material
Aluminium
Weight
1600 g
Insertion type
Cylindrical
ManoMano Reference
ME61242336
MMID
692509995659
Product code
ZXDGSBR16-500MM01V0
EAN
0617201462683

Customer reviews

4,2

/ 52 Reviews

Reviews verified by ManoMano

JJean-Paul

Published on 02/01/2023, France

Block threads are approximate A pin or a circlip at the end of the rail to stop the running of the blocks would be welcome

1 person found this helpful

JJean-Baptiste

Published on 21/04/2023, France

Not the best bearings in the world, but for this price I'm very satisfied.

AAdrien

Published on 19/04/2023, France

The rail itself is correct, the bearings on the other hand are less that

YYves

Published on 18/04/2023, France

One of the riders does not fit on the rail, finishing problem,

Ddavid

Published on 01/03/2023, France

Parcel received very quickly, and very good delivery. I used the rails to make a sliding door upwards, frankly very good guide of good quality, slides well and robust very satisfied

6 people found this helpful

HHenry

Published on 23/05/2023, France

Its sliding, its precision. Ideal for dragging a product, a load! About me, I made a tray to place my FRM in the car and using a 12 V electric jack (also acquired from ManoMano), I mount my chair on the rail and slide it effortlessly..

1 person found this helpful
