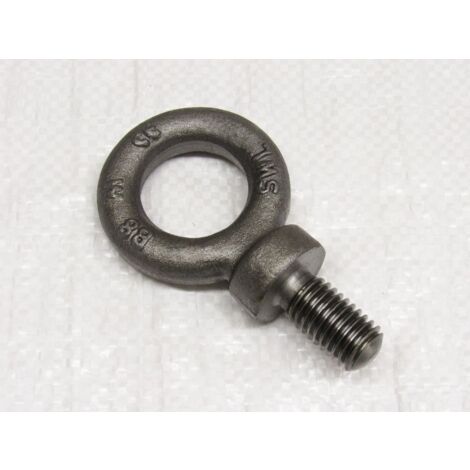

M10 0.23 Ton Self Colour Dynamo Eyebolt - 230KG Metric Eye Bolt BS4278

Name: M10 0.23 Ton Self Colour Dynamo Eyebolt - 230KG Metric Eye Bolt BS4278
Brand: SECUREFIX DIRECT
SKU: SFMDE310
Price: 5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These M10 Self Colour Dynamos Eyebolts are designed for various lifting applications. They are widely used in the lifting industry and are tested and certified for lifting purposes. It is essential that these eyebolts are used only for straight lifts and by competent personnel.

Technical specifications

Thread Diameter: M10

Finish: Self Colour

Product Code: SFMDE310

Safe Working Load (SWL): 0.23 Ton (230 KG)

Dimensions:

A (MM): 17.3

B (MM): 40.4

C (MM): 22.2

D (MM): 10

E (MM): 9.5

F (MM): 27.8

G (MM): 13.1

H (MM): 17.5

Pitch: 1.5

Other information

Test certificate included (sent via email)

Features

Brand
SECUREFIX DIRECT
Maximum load
230 kg
Pcs per pack
1
Warranty
1 year(s)
Colour
Multicolour
Material
Two-material
Hook type
Screw eye
ManoMano Reference
ME27128941
MMID
755653899458
Product code
SFMDE310
EAN
600988494381
