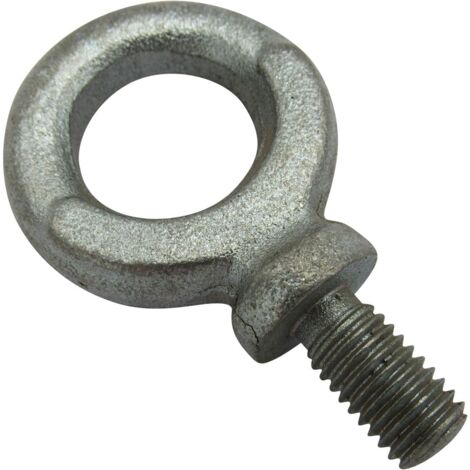

M16 0.63 Ton Zinc Plated Dynamo Eyebolt - 630KG Metric Eye Bolt

Sold by SecureFix Direct

You may also like

Eye Bolt with Wing Nut Stainless Steel 10MM x 60MM (Marine Butterfly Boat Rigging)SECUREFIX DIRECT

Eye Bolt with Wing Nut Stainless Steel 10MM x 60MM (Marine Butterfly Boat Rigging)

Free delivery
5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable ClipSECUREFIX DIRECT

5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable Clip

1
Free delivery
M8 Lifting Eye Bolt - Long Shank Dynamo Self Colour Threaded Eyebolt BS4278 0.095 Ton 8MMSECUREFIX DIRECT

M8 Lifting Eye Bolt - Long Shank Dynamo Self Colour Threaded Eyebolt BS4278 0.095 Ton 8MM

Free delivery
M10 Lifting Eye Bolt Long Shank - Self Colour Collared Eyebolt BS4278 330KG 10MMSECUREFIX DIRECT

M10 Lifting Eye Bolt Long Shank - Self Colour Collared Eyebolt BS4278 330KG 10MM

Free delivery
M10 Long Shank Eye Bolt Stainless Steel (200MM Metric Thread Rope Cable Marine Grade)SECUREFIX DIRECT

M10 Long Shank Eye Bolt Stainless Steel (200MM Metric Thread Rope Cable Marine Grade)

Free delivery
x10 M6 X 150MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M6 X 150MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

2
Free delivery
M12 Lifting Eye Bolt - Zinc Plated Long Shank Dynamo Threaded Eyebolt BS4278 0.32 Ton 12MMSECUREFIX DIRECT

M12 Lifting Eye Bolt - Zinc Plated Long Shank Dynamo Threaded Eyebolt BS4278 0.32 Ton 12MM

Free delivery
M12 Lifting Eye Bolt Long Shank - Self Colour Collared Eyebolt BS4278 400KG 12MMSECUREFIX DIRECT

M12 Lifting Eye Bolt Long Shank - Self Colour Collared Eyebolt BS4278 400KG 12MM

1
Free delivery
x10 M10 X 250MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M10 X 250MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

1
Free delivery
M24 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 2.5 Ton 24MMSECUREFIX DIRECT

M24 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 2.5 Ton 24MM

1
Free delivery
x10 M10 X 200MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M10 X 200MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

1
Free delivery
x10 M10 X 100MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M10 X 100MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

1
Free delivery
x2 26MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog LiftingSECUREFIX DIRECT

x2 26MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting

Free delivery
32MM Wire Rope Tube Thimbles x2 - Blue PaintedSECUREFIX DIRECT

32MM Wire Rope Tube Thimbles x2 - Blue Painted

1
Free delivery
x1 M8 Galvanised Forged Straining Screw Hook And Hook - Caravan Turnbuckle Open BodySECUREFIX DIRECT

x1 M8 Galvanised Forged Straining Screw Hook And Hook - Caravan Turnbuckle Open Body

1
Free delivery
Makita 199826-6 Guide Rail Clamps Quick Release for SP6000 DSP600 Plunge SawMAKITA
#1 in sales

Makita 199826-6 Guide Rail Clamps Quick Release for SP6000 DSP600 Plunge Saw

33
£58.99
Free delivery
YMYNY 12pcs 3mm Galvanized Stainless Steel Cable Clamp Wire Rope Clamp Arc-Shaped Metal Cable Clips Stainless Steel Arc-Shaped Clamp Steel Cable Clamp for Fixing Cables and Ropes

YMYNY 12pcs 3mm Galvanized Stainless Steel Cable Clamp Wire Rope Clamp Arc-Shaped Metal Cable Clips Stainless Steel Arc-Shaped Clamp Steel Cable Clamp for Fixing Cables and Ropes

£18.56
Free delivery
1000pcs Black Cable Ties, Heavy Duty Plastic Cable Ties, Rilsan Nylon Cable Ties, Cable Tie Assortment, 100/150/200/250/300mm Length, 3/4mm WidthLONGZIMING

1000pcs Black Cable Ties, Heavy Duty Plastic Cable Ties, Rilsan Nylon Cable Ties, Cable Tie Assortment, 100/150/200/250/300mm Length, 3/4mm Width

4
£37.71
Free delivery
Cable connector 20x connectors for boundary wire, repair kit for robotic lawnmower cables, cable clamp, for connecting cable ends, resin-filled cable connectors for Automower robotic lawnmowersMEMKEY

Cable connector 20x connectors for boundary wire, repair kit for robotic lawnmower cables, cable clamp, for connecting cable ends, resin-filled cable connectors for Automower robotic lawnmowers

2
Free delivery
100 Pack Adhesive Cable Tie Mounts, Multipurpose Universal Cable Tie Base Mounts, Black (Length 150mm, Width 2cm, Black)BEIJIYI

100 Pack Adhesive Cable Tie Mounts, Multipurpose Universal Cable Tie Base Mounts, Black (Length 150mm, Width 2cm, Black)

2
Free delivery

Compare with similar items

Product information

Description

General description

The M16 0.63 Ton Zinc Plated Dynamo Eyebolt is designed for various lifting applications. It is a robust and reliable component, widely used in the lifting industry due to its tested and certified capabilities for lifting tasks. This eyebolt is suitable for straight lifts and should be operated by a competent person.

Technical specifications

  • Thread Diameter: M16
  • Safe Working Load (SWL): 0.63 Ton (630 KG)
  • Dimensions:
  • A (MM): 28.8
  • B (MM): 58.5
  • C (MM): 32.7
  • D (MM): 16
  • E (MM): 16.8
  • F (MM): 41.4
  • G (MM): 14.2
  • H (MM): 30
  • Pitch: 2.00

    • Other information

  • Test Certificate included (sent via email)
  • Product Code: SFMDE16

    • Features

    • Brand
      SECUREFIX DIRECT
    • Length
      2.88 cm
    • Width
      2.23 cm
    • Material
      Zinc
    • Colour
      Multicolour
