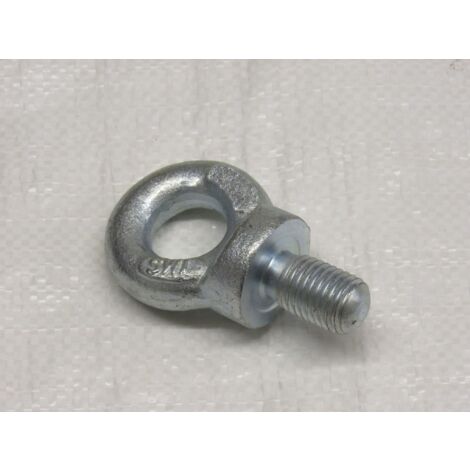

M24 Lifting Eye Bolt - Zinc Plated Collared Threaded Eyebolt BS4278 2.5 Ton 24MM

Name: M24 Lifting Eye Bolt - Zinc Plated Collared Threaded Eyebolt BS4278 2.5 Ton 24MM
Brand: SECUREFIX DIRECT
SKU: SFMCE24ZP
Price: 14.99 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our high-quality M24 Lifting Eye Bolt is a zinc-plated, collared threaded eyebolt rated for a safe working load (SWL) of 2.5 tons. It conforms to BS4278 standards, making it a reliable choice for various lifting applications. These eyebolts are widely used in the lifting industry due to their tested and certified performance.

Technical specifications

Product Code: SFMCE24ZP

Product Weight: 0.87 kg

Thread Diameter: 24 mm

Safe Working Load (SWL): 2.5 tons

Finish: Zinc Plated

Dimensions:

A (MM): 51

B (MM): 76

C (MM): 35

D (MM): 24

E (MM): 22

F (MM): 45

G (MM): 21

H (MM): 40.5

Pitch: 3.00

Usage

These eyebolts are suitable for various lifting applications, including inclined lifts. However, it is important to note that the safe working load (SWL) may vary depending on the angle of lift.

Features

Brand
SECUREFIX DIRECT
Length
2.4 cm
Width
2.4 cm
Weight
870 g
Material
Zinc
