REF SFMCE16ZPME27128973

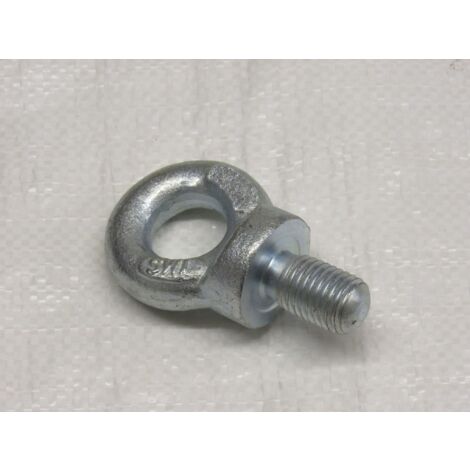

M16 Lifting Eye Bolt - Zinc Plated Collared Threaded Eyebolt BS4278 800KG 16MM

Product out of stock
Product out of stock












Product details
Description

Specifications: Product Code: SFMCE16ZP Product Weight: 0.08kg 16MM 0.8 Ton ZP Threaded Collar Eyebolt Thread DIA - 16MM Conforms To - BS4278 Finish - Zinc Plated CODE SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) Pitch SFMCE06 0.1 22 33 15.5 6 8 21 8.5 19 1.00 SFMCE08 0.15 22.5 33 14.5 8 8 20 9 19 1.25 SFMCE10 0.25 22.5 32.5 15 10 9 20 9 19.5 1.50 SFMCE12 0.4 22 33 14 12 9 21 13.5 19 1.75 SFMCE12ZP 0.4 23 32.5 14.5 11.5 9 19 9 19 1.75 SFMCE14 0.5 29 44 20.5 14 14 26 11.5 24.5 2.00 SFMCE16 0.8 29 44 20 16 11 25 12 24 2.00 SFMCE16ZP 0.8 29 44 20 16 11 25 12 24 2.00 SFMCE18 1 40.5 58 26.5 18 16 35 16 33 2.50 SFMCE20 1.6 40 59 27.5 20 17 36 15.5 33.5 2.50 SFMCE20ZP 1.6 40 59 27.5 20 17 36 15.5 33.5 2.50 SFMCE22 1.6 52.5 76.5 35.5 22 18 43.5 21 36 2.50 SFMCE24 2.5 51 76 35 24 22 45 21 40.5 3.00 SFMCE24ZP 2.5 51 76 35 24 22 45 21 40.5 3.00 SFMCE27 2.5 57.5 84 38 27 22.5 52 22.5 46 3.00 SFMCE30 4 67 96.5 43.5 30 27 58 26 53 3.50 SFMCE30ZP 4 64.5 95.5 42.5 30 27 59 27.5 47 3.50 SFMCE33 5 72 106 46.5 33 31 61 30 57 3.50 SFMCE36 6.3 80 117 54 36 33.5 72 32 64 4.00 SFMCE36ZP 6.3 80 117 54 36 33.5 72 32 64 4.00 SFMCE42 8 100 144 71 41 45 90 39 80 4.50 Our high quality 0.8 Ton Short Shank Zinc Plated Eyebolts are excellent for numerous applications, and are rated to BS4278. They are hugely popular within the lifting industry as they are tested and certified for lifting. They can also be used for inclined lifts, however please note that the SWL will change dependant on the angle of lift.
