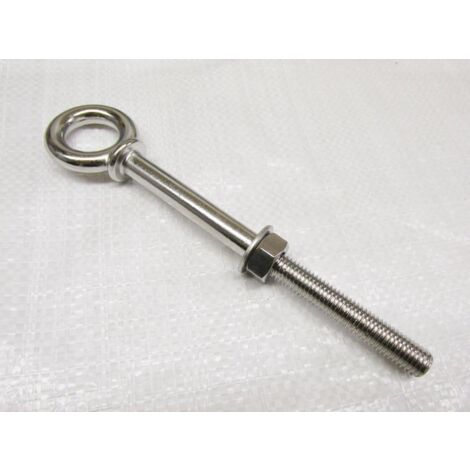

M20 Stainless Steel Eye Bolt with Shoulder (152MM Shank Marine Grade Rigging)

Stainless Steel Shoulder Eyebolt Size - 20MM x 152MM Material - 316 Grade Stainless Steel Not to be used for lifting Product Code Breaking Load (KG) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) I (MM) SFSSLRE06 836 12 21.5 12.5 6 61 11.75 4.5 105 36 SFSSLRE08 1479 15 27 15.5 8 65 17 6 109 44 SFSSLRE10 2305 16.5 33.5 18.75 10 57 18 8 117 50 SFSSLRE12 3325 23 45 24 12 76 25 10 153 75 SFSSLRE16 5905 28 55.5 31 16 65 34 12.5 149 75 SFSSLRE20 9220 35 69 37.5 20 64 40 15.5 151 75 These Shoulder Eyebolts Are Excellent For A Variety Of Applications These Are Hugely Popular Within The Marine Industry As They Are Manufactured From 316 Grade Stainless Steel Giving Them The Best Rust Protection. *Please Note We Supply A Huge Variety Of Stainless Steel Parts* ***FREE DELIVERY*** Product Code: SFSSLRE20
