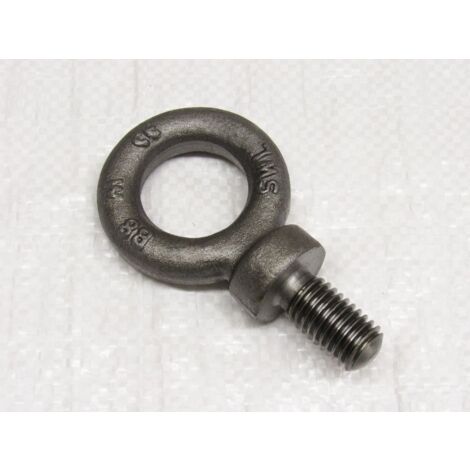

M8 0.15 Ton Self Colour Dynamo Eyebolt - 150KG Metric Eye Bolt

Name: M8 0.15 Ton Self Colour Dynamo Eyebolt - 150KG Metric Eye Bolt
Brand: SECUREFIX DIRECT
SKU: SFMDE08
Price: 4.7 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These M8 0.15 Ton Self Colour Dynamo Eyebolts are designed for various lifting applications. They are widely used in the lifting industry due to their reliability and strength. Each eyebolt is tested and certified for lifting, ensuring safety and performance during use.

Technical specifications

Thread Diameter: M8

Safe Working Load (SWL): 0.15 Ton

Dimensions:

A (MM): 19.5

B (MM): 41.8

C (MM): 22.3

D (MM): 8

E (MM): 10.6

F (MM): 27

G (MM): 10.5

H (MM): 20

Pitch: 1.25

Usage

These eyebolts are suitable for straight lifts only and should be used by a competent person to ensure safety during lifting operations.

Other information

Test certificate included (sent via email). Images and additional details can be provided upon request.

Features

Brand
SECUREFIX DIRECT
Width
1.05 cm
Height
1.06 cm
Material
Steel
Certification body
EN166
