Manual tile cutter push engraving 133 cm Battipav sintesi 133

Sold by GLS72

Product information

Description

General description

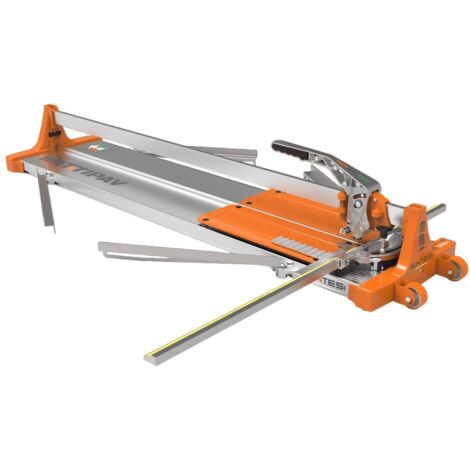

SINTESI 133 from Battipav is a professional tile cutter designed for push engraving, capable of making straight and diagonal cuts on ceramic, single-fired tiles, and stoneware. It features a robust yet lightweight aluminum base, making it easy to transport with standard wheels and an ergonomic handle.

Technical specifications

Max cutting length: 1330 mm

Max tile format for diagonal cutting: 940 × 940 mm

Cutting thickness: 4 - 21 mm

Cutting method: push engraving

Engraving wheel diameter: 22 mm

Side extensions: 4

Packaging dimensions: 454 x 1796 x 340 mm

Gross weight: 33 kg

Net weight: 28 kg

Compatibility and accessories

Extra engraving wheel kit included

Carriage with nine adjustable ball bearings

Protractor ruler

Side extensions for large format tiles

Wheels for transport

Installation

Adjustable diagonal cutting from -45° to 0 to +45°

Height of the bar is adjustable for specific tile thickness

Usage

Rubber inserts on both sides protect the cutter from impacts

Magnet on the breaker foot allows for a single pass incision

Handle lift prepares the breaker foot for splitting

New design of lateral supports ensures stability for large formats

Long extension for comfortable and safe cutting

Features

Brand
DIAM INDUSTRIES
Cutting length
133 cm
Power source
Manual
Tilt angle
45 °
Disc / blade diameter
22 mm
