Manual tile cutter push engraving 163 cm Battipav sintesi 163

Sold by GLS72

Product information

Description

General description

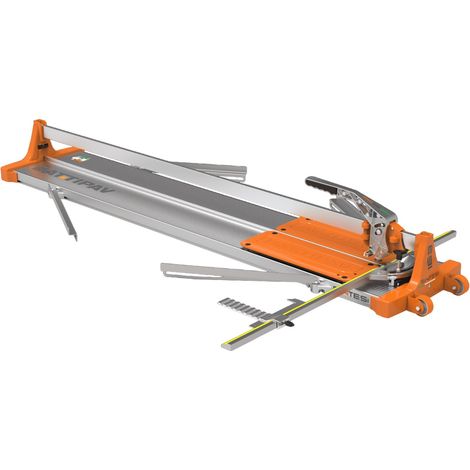

SINTESI 163 from Battipav is a professional tile cutter designed for push engraving, enabling both straight and diagonal cuts on ceramic, single-fired tiles, and stoneware. It features a robust yet lightweight aluminum base, making it easy to transport with standard wheels and an ergonomic handle.

Technical specifications

Max cutting length: 1630 mm

Max tile format for diagonal cutting: 1152 × 1152 mm

Cutting thickness: 4 - 21 mm

Engraving wheel diameter: 22 mm

Side extensions: 4

Packaging dimensions: 454 x 2096 x 340 mm

Gross/net weight: 37.1/33 kg

Compatibility and accessories

Extra engraving wheel kit included

Carriage with nine adjustable ball bearings

Protractor ruler

Side extensions for large format tiles

Wheels for transport

Installation

Adjustable diagonal cutting from -45° to 0 to +45°

Height of the bar adjustable for specific tile thickness

Usage

Push engraving cutting method for precision

Magnet on the breaker foot allows for a single pass incision

Breaker foot ready for splitting by lifting the handle

New design of lateral supports for stability with large formats

Long extension for comfortable and safe cutting

Features

Brand
DIAM INDUSTRIES
Cutting length
163 cm
Power source
Manual
Tilt angle
45 °
Disc / blade diameter
22 mm
