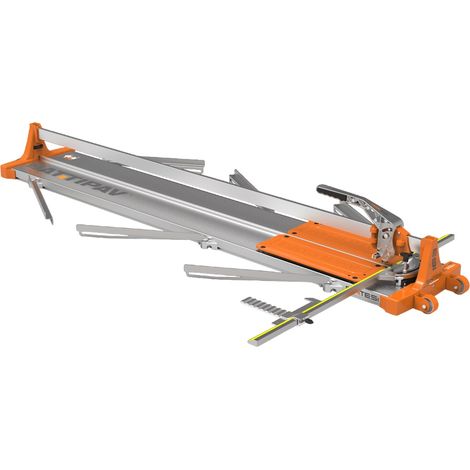

Manual tile cutter push engraving 183 cm Battipav sintesi 183

Sold by GLS72

Product information

Description

General description

SINTESI 183 from Battipav is a professional tile cutter designed for both straight and diagonal cuts of ceramic, single-fired tiles, and stoneware. It features a push engraving mechanism, making it user-friendly and efficient for various cutting tasks.

Technical specifications

Max cutting length: 1830 mm

Max tile format for diagonal cutting: 1290 × 1290 mm

Cutting thickness: 4 - 21 mm

Engraving wheel diameter: 22 mm

Side extensions: 6

Packaging dimensions: 454 x 2296 x 340 mm

Gross/net weight: 40.1/36 kg

Compatibility and accessories

Extra engraving wheel kit included

Carriage with nine adjustable ball bearings

Protractor ruler

Side extensions for large format tiles

Wheels for transport

Installation

Adjustable diagonal cutting from -45° to 0 to +45°

Height of the bar is adjustable for specific tile thickness

Usage

Easy to transport thanks to standard wheels and ergonomic handle

Large and robust base made with aluminum profiles for rigidity and lightness

Rubber inserts on both sides protect the cutter from impacts

Breaker foot made of aluminum with a rubber protector to prevent scratches

Magnet positioned on the foot allows for a single pass incision

Handle lift prepares the breaker foot for splitting

New design of lateral supports ensures stability when cutting large formats

Long extension for comfortable and safe cutting

Features

Brand
DIAM INDUSTRIES
Cutting length
183 cm
Power source
Manual
Tilt angle
45 °
Disc / blade diameter
22 mm
