MAX7219 Dot Matrix MCU LED 4 in 1 4 x 64 Display Module Compatible with Arduino and Raspberry Pi MAX7219 Dot Matrix Module, LH Control Microcontroller Module (Red Light)

~~£18.86~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Menkey

Product information

Description

General description

The MAX7219 Dot Matrix MCU LED 4 in 1 4 x 64 Display Module is an integrated common cathode input/output serial display driver designed to connect a microprocessor to an 8-digit 7-segment digital LED display, a bar graph display, or 64 independent LEDs. It features a low power shutdown mode and supports cascading multiple modules.

Technical specifications

Operating voltage: 5V

Module size: length 12.8cm x width 3.2cm x height 1.3cm

Mounting screw holes: 64, hole diameter 3mm

Power consumption in shutdown mode: 150µA

Installation

Connect the left side of the module to the input port and the right side to the output port.

For a single module, connect the input port to the CPU.

For multiple modules, connect the input terminal of each module to the CPU and the output terminal of one module to the input terminal of the next module.

Example connections for a 51 microcontroller: CCV→5V, GND→GND, DIN→P2.2, CS→P2.1, CLK→P2.0.

Usage

Utilizes a convenient four-wire serial interface for communication with microprocessors.

Allows addressing of each data item during updates without overwriting all displays.

Users can choose whether to encode each data item.

Controls analog and digital brightness settings.

Includes a scan limit register to display 1 to 8 bits of data.

Features a read mode that turns on all LEDs.

Other information

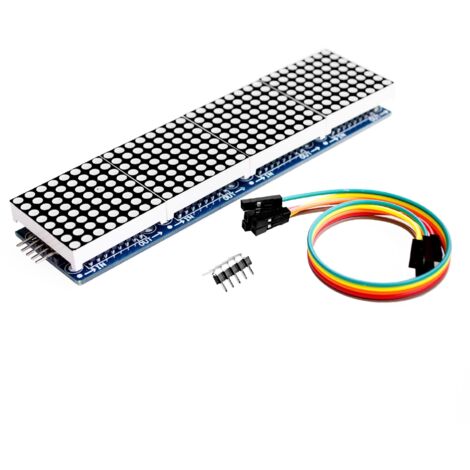

Shipping list includes: 1 MAX7219 four-in-one matrix module (tested finished product) and 1 20cm DuPont 5P line.

Features

Brand
AOUGO
Pcs per pack
1
Colour
Red
Height
1.3 cm
Width
3.2 cm
Length
12.8 cm
Material
Polystyrene (PS)
Weight
100 g
Voltage
5 V
Type of electronic component
Display
ManoMano Reference
ME68442443
MMID
941744842786
Product code
AG-07764
EAN
9412349304359
