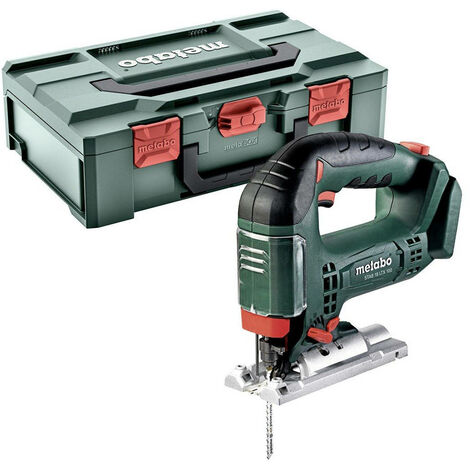

Metabo 601003840 18V Li-ion Bow Handle Jigsaw With Metabox

Name: Metabo 601003840 18V Li-ion Bow Handle Jigsaw With Metabox
Brand: METABO
SKU: 601003840
Price: 123.95 GBP
Availability: InStock

Sold by DVS Power Tools Ltd

Product information

Description

General description

The Metabo 601003840 18V Li-ion Bow Handle Jigsaw is a powerful tool designed for precise and material-matched sawing. It features a variable stroke rate, pendulum stroke, and low-lying saw blade guidance with spring support, ensuring optimal cutting performance. The jigsaw allows for tool-free blade changes with automatic ejection, enhancing user convenience. Its top handle is equipped with a non-slip soft-grip surface for added comfort and control during use. Additionally, the selectable shaving blower function provides a clear view of the cutting line, while the battery packs come with a capacity display for easy charge status checks.

Technical specifications

Type of battery pack: Li-ion

Battery pack voltage: 18 V

Cutting depth wood: 100 mm

Cutting depth NF metal: 25 mm

Cutting depth sheet steel: 10 mm

Swivel range: -45 / +45 °

Pendulum stroke levels: 4

Strokes in idle: 0 - 2800 rpm

Weight (including battery pack): 2.6 kg

Vibration (sawing wood): 9.8 m/s²

Vibration (sawing metal): 6.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission (sound pressure level): 84 dB(A)

Sound power level (LwA): 95 dB(A)

Uncertainty of measurement K: 3 dB(A)

Compatibility and accessories

1 x 18V Li-ion Bow Handle Jigsaw (Bare Unit)

1 x Extraction nozzle

1 x Jigsaw blade

1 x Hexagonal wrench

1 x MetaBox case

1 x MetaBox case insert

1 x Protective glass

1 x Chip guard plate

Features

Brand
METABO
NF certification
NF
Warranty
1 year(s)
Number of batteries included
1
Power source
Cordless
Laser
No
Pendulum
Yes
Weight
2.6 kg
Ergonomic handle
Yes
Cutting depth
100 mm
Noise level
95 dB
Battery technology
Li-ion
Voltage
18 V
Handle type.
Bow handle
Rotational speed
2800 rpm
Variable speed
Yes
ManoMano Reference
ME66129199
MMID
747422000806
Product code
601003840

Advice from

Jigsaw buying guide

Jigsaws are essential for making straight or curved cuts in worktops, PVC, wood, parquet, plastic and melamine. These tools can be cordless or corded, and can offer various features such as orbital action, metal or laser cutting guides and even a dust extraction system. Read on to find the right jigsaw for you!

Read our guide

Visit the METABO store

METABO, a brand of the German company Metabo Werke Gmbh, is an epitome of German entrepreneurship. It was founded by Albrecht Schnizler in 1923 in Nürtingen (Baden-Württemberg), in the backroom of his parents' bakery. A passionate inventor, he designed the first hand-held drill capable of piercing metal, which was widely used at the time. Named the n°18, it sold over 50,000 units, mainly in Great Britain. In 1929, Metabo Werke was founded with two other partners; METABO derives from the German Metallbohrdreher, hand drill. Innovations in power tools followed one another: in 1950 came the first grinder, the following year the sander, then a year later the quick-release chuck, and in 1957 a world exclusive: the percussion drill... in all, more than 500 patents and designs were registered. METABO continues to manufacture its saws, hedge trimmers and screwdrivers in Germany: in 2005, more than half the company's employees were based in Germany. By 1999, the Group had become Europe's number 1 in woodworking tools, and the world's second largest.
