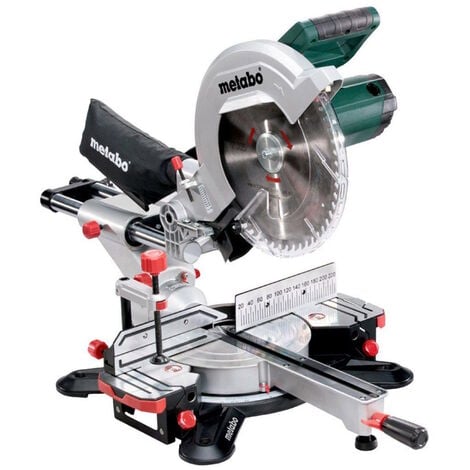

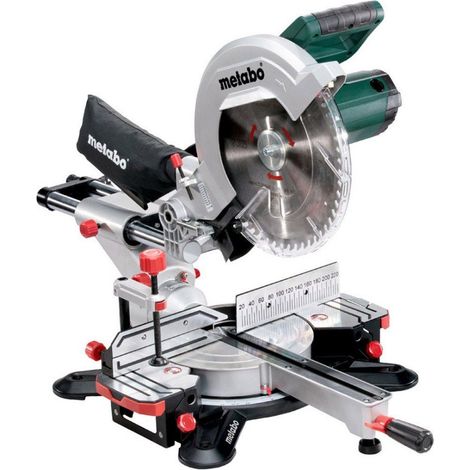

Metabo KGS305M Mitre Saw 305mm 110V

Name: Metabo KGS305M Mitre Saw 305mm 110V
Brand: METABO
SKU: KGS305M/110V
Availability: OutOfStock

Product out of stock

Product information

Description

General description

Metabo KGS305M Mitre Saw is designed for precision cutting in wood, featuring a sliding function that accommodates wide workpieces. This powerful tool boasts an extremely robust universal motor and a large 305mm saw blade, ensuring exceptional cutting performance. Its compact and lightweight design allows for easy one-handed transport, making it suitable for various job sites.

Technical specifications

Dimensions (L x W x H): 850 x 515 x 615 mm

Maximum cutting width: 90° - 305 mm, 45° - 205 mm

Maximum cutting depth: 90° - 105 mm, 45° - 67 mm

Maximum cross section of the workpiece: Straight cut 90°/90° - 305 x 105 mm, Double Mitre 45°/45° - 205 x 67 mm

Turntable setting: Left/right - 47°/47°

Blade tilt: Left/right - 47°/2°

Saw blade diameter: Ø 305 x 30 mm

Rated input power S1 100%: 1600 W

Rated input power S6 20%: 2000 W

Idle revolution: 3,700 /min

Revolutions at rated load: 2,600 /min

Weight: 19.6 kg

Compatibility and accessories

Supplied with carbide saw blade (56 teeth)

Table length extensions

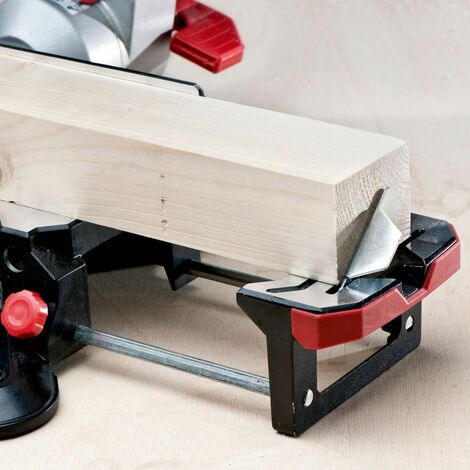

Length guide

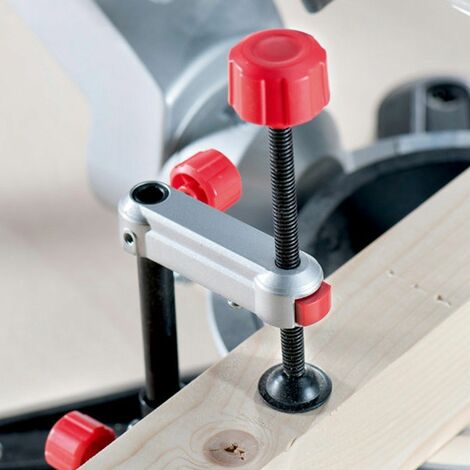

Material clamp

Tool for saw blade change

Cable winder

Chip collection bags

Usage

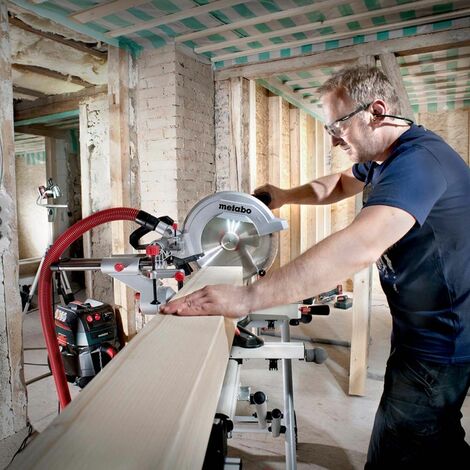

The Metabo KGS305M Mitre Saw is ideal for making precise cross cuts and mitre cuts in wood. It features an effective dust extraction system, an integrated laser for accurate cutting line display, and a bright LED work light for improved visibility during operation. The saw head can be inclined for undercuts, and all controls are intuitively accessible from the working position.

Other information

Starting current limitation prevents the actuation of the lock on start-up

Easy saw blade change with spindle lock, no need to dismantle the pendulum protective cover

Features

Brand
METABO
Length
85 cm
Width
51.5 cm
Height
61.5 cm
Weight
19.6 kg

Advice from

Mitre saw buying guide

Got some skirting boards, door frames or trim to cut? A mitre saw is the perfect tool for the job. Whether you go for a hand saw or powered model, these saws can be used for a range of angled cuts. Looking for more? A sliding mitre saw features a sliding mechanism for increased cutting width. Read on for our top tips!

Read our guide

Visit the METABO store

METABO, a brand of the German company Metabo Werke Gmbh, is an epitome of German entrepreneurship. It was founded by Albrecht Schnizler in 1923 in Nürtingen (Baden-Württemberg), in the backroom of his parents' bakery. A passionate inventor, he designed the first hand-held drill capable of piercing metal, which was widely used at the time. Named the n°18, it sold over 50,000 units, mainly in Great Britain. In 1929, Metabo Werke was founded with two other partners; METABO derives from the German Metallbohrdreher, hand drill. Innovations in power tools followed one another: in 1950 came the first grinder, the following year the sander, then a year later the quick-release chuck, and in 1957 a world exclusive: the percussion drill... in all, more than 500 patents and designs were registered. METABO continues to manufacture its saws, hedge trimmers and screwdrivers in Germany: in 2005, more than half the company's employees were based in Germany. By 1999, the Group had become Europe's number 1 in woodworking tools, and the world's second largest.
