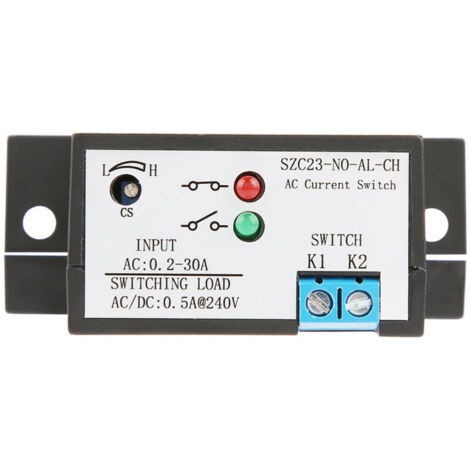

Miniature Current Switch, Normally Open Current Detection Switch SZC23-NO-AL-CH AC 0.2-30A Adjustable Current Monitoring Relay
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
The SZC23 series AC current detection switch is designed and manufactured to solve AC current monitoring problems. It uses the principle of mutual inductance to detect forward AC current, isolate the AC current, and output a normally open or normally closed switching signal to directly control various industrial automation equipment, such as flashers, buzzers, relays, single-chip devices, or any other electrically loaded equipment. Compared to traditional mutual inductors, thermal protectors, and other devices, using this device not only provides more precise and faster control but also significantly simplifies design and reduces costs.
Specification:
Model: SZC23-NO-AL-CH
Power supply: Not required
Rated load: ≤0.5A at 240V AC/DC
Input current: 0.2-30A AC
Minimum ignition: 0.5±0.2A
Maximum overload: 100%
Leakage current: ≤0.1A
Accuracy: 1%
Hysteresis: ≤1%
Response time: ≤200ms
Repeatability: 100%
Operating Temperature: -20~60℃
Waterproof: IP30
Dimensions: 65*25*47mm / 2.56*0.98*1.85in
Hole Diameter: 10mm / 0.4in
Package Weight: Approx. 56g/2.0oz
Package List:
1 * Current Detection Switch
Note:
1. Due to the difference between monitors and lighting effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thank you for your understanding.
Specification:
Model: SZC23-NO-AL-CH
Power supply: Not required
Rated load: ≤0.5A at 240V AC/DC
Input current: 0.2-30A AC
Minimum ignition: 0.5±0.2A
Maximum overload: 100%
Leakage current: ≤0.1A
Accuracy: 1%
Hysteresis: ≤1%
Response time: ≤200ms
Repeatability: 100%
Operating Temperature: -20~60℃
Waterproof: IP30
Dimensions: 65*25*47mm / 2.56*0.98*1.85in
Hole Diameter: 10mm / 0.4in
Package Weight: Approx. 56g/2.0oz
Package List:
1 * Current Detection Switch
Note:
1. Due to the difference between monitors and lighting effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thank you for your understanding.
Features
- BrandTEHTUY
- Control functionYes
- Height4.7 cm
- IP ratingIP30
- Width1 cm
- MaterialMetal
- Type of electrical installationVisible
- ManoMano ReferenceME99017173
- MMID635999483895
- Product codemano-HWLX-10754
- EAN6282768387317
